Rolling Stock
EN standard cables
EN50264
The EN50264 series specifies cables for power, control and related circuits which, in the event of a fire, limit the risk to people and thus improve railway safety overall. It covers sheathed and unsheathed cables based on halogen-free insulating and sheathing materials for railway rolling stock. In the event of a fire, cables compliant with EN50264 emit only limited amounts of toxic gases. In addition, these cables produce limited smoke when burning. This last characteristic minimises the loss of visibility in the event of a fire and helps to reduce evacuation times.

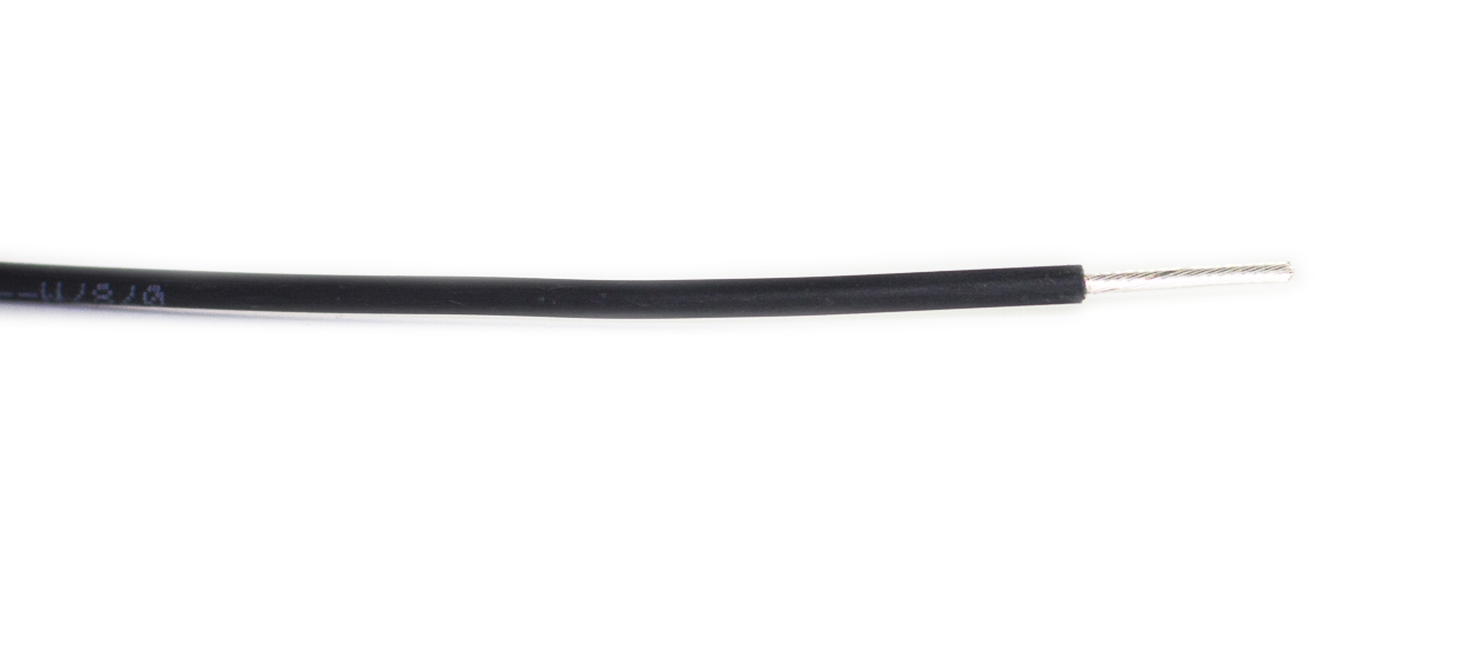

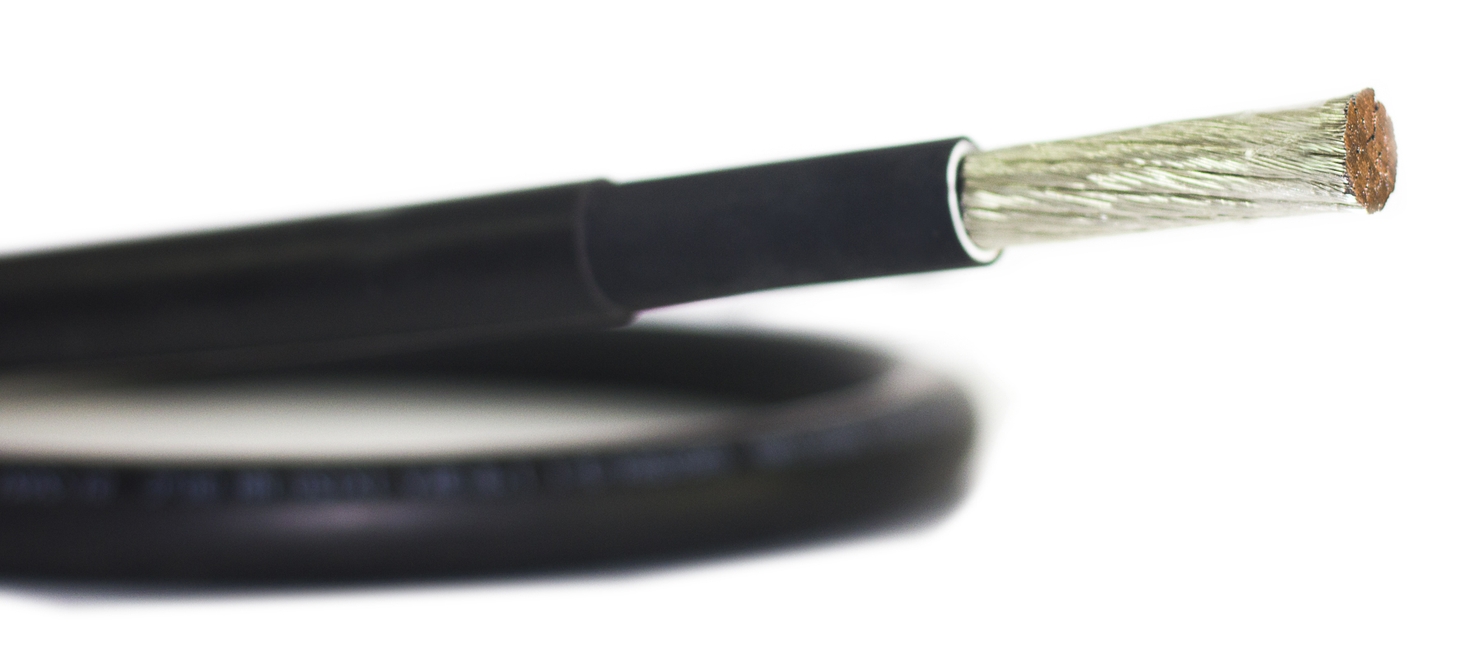

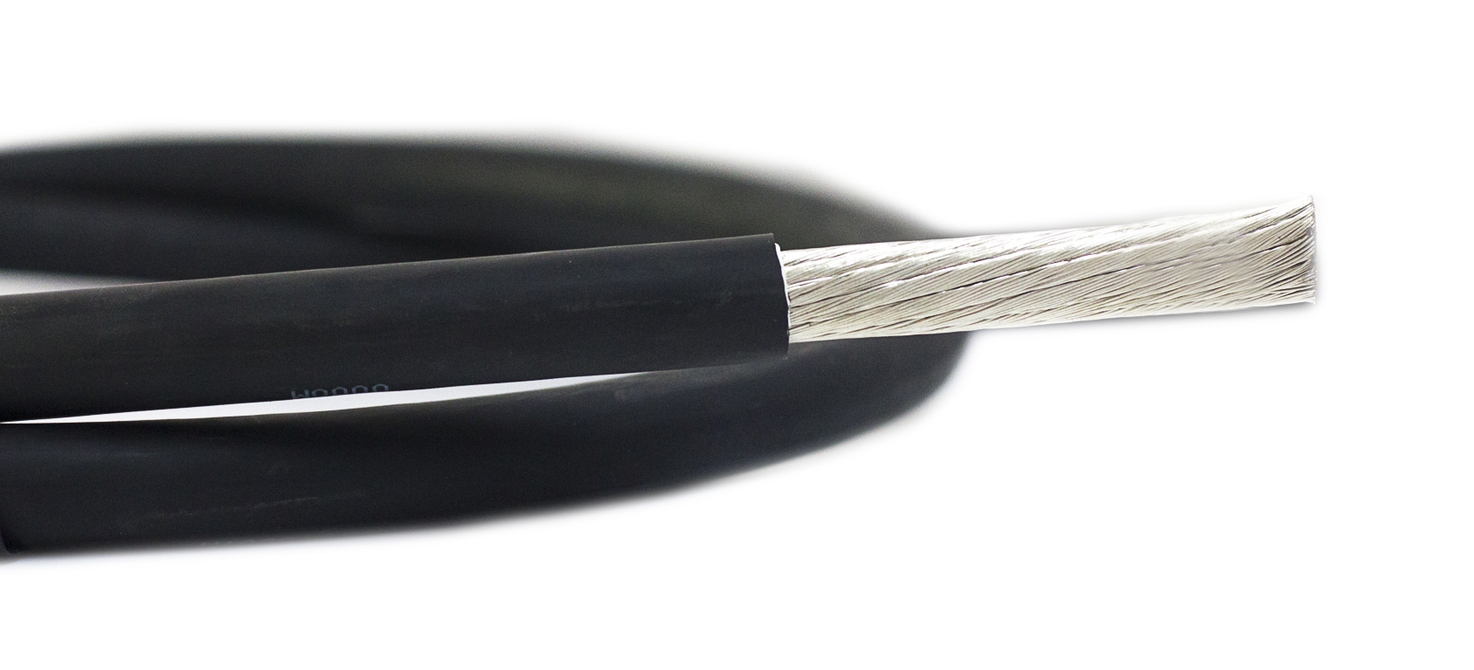

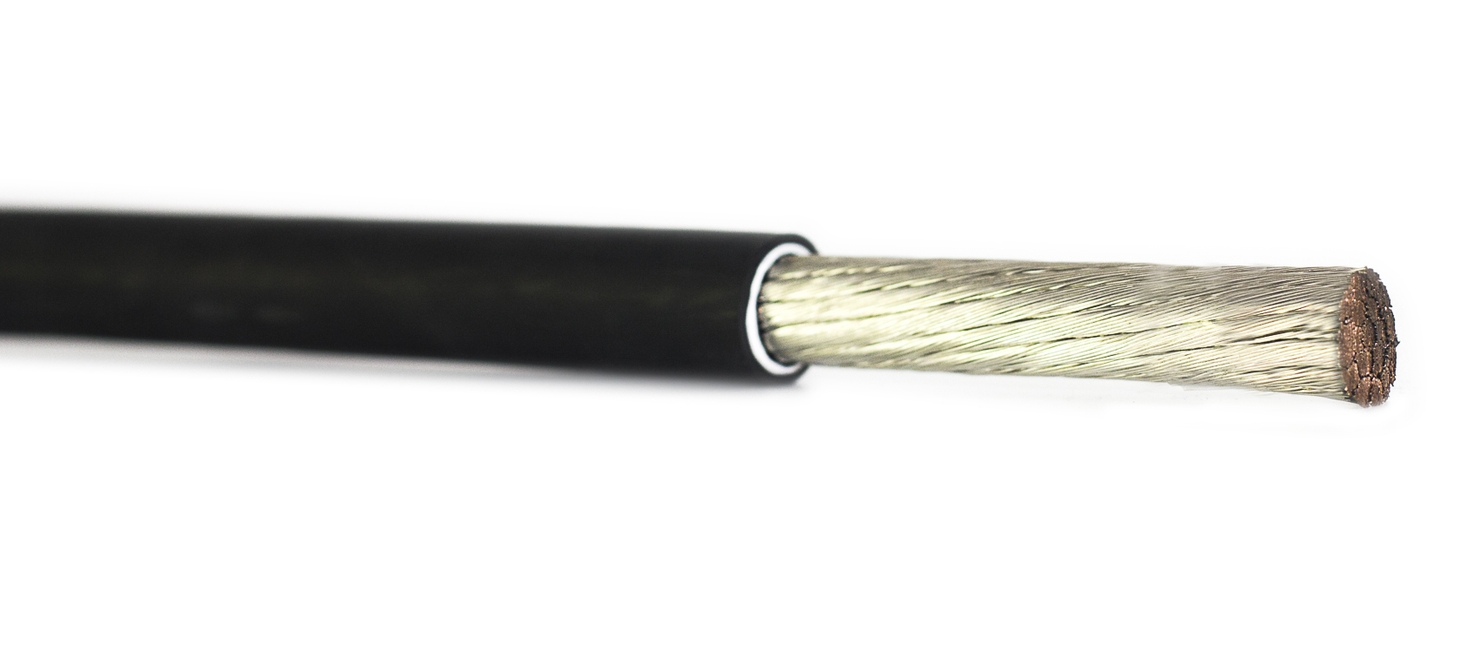

EN50264-3-1

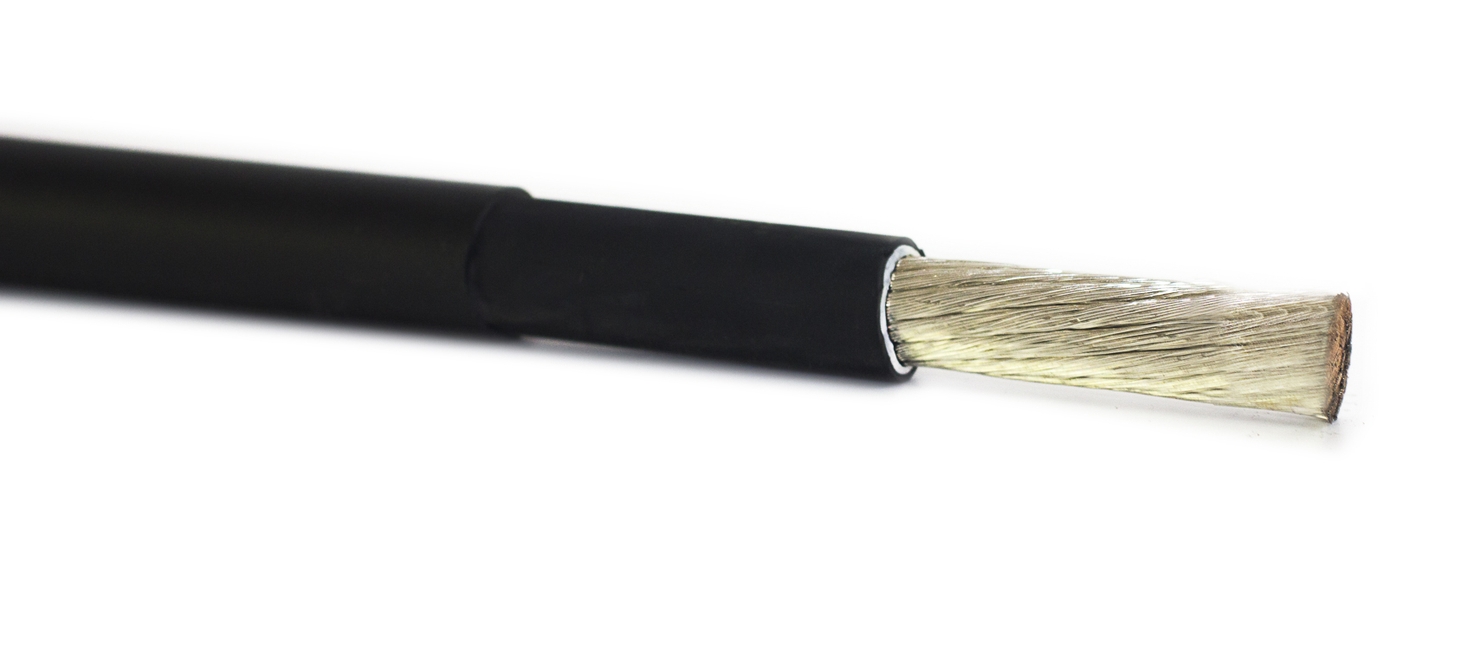

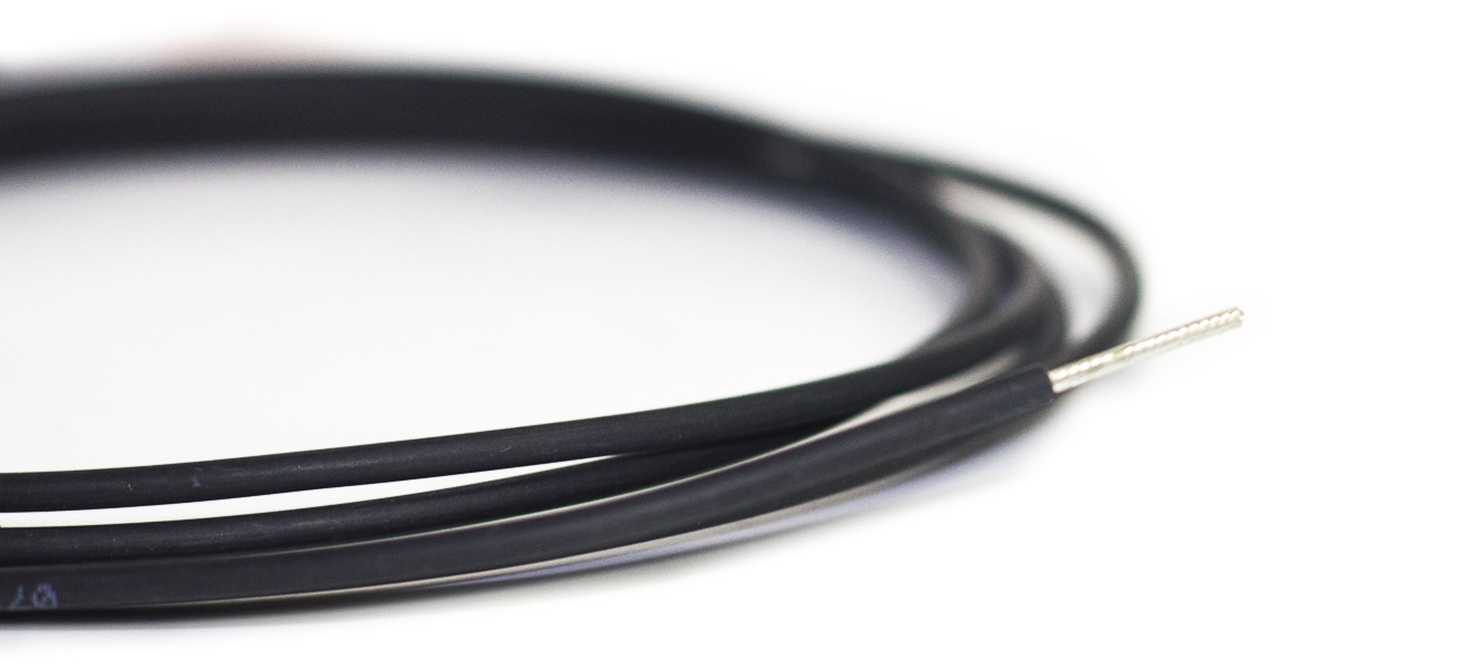

EN50264-3-1 0.6/1KV 90℃ M
EN50264-3-1 1.8/3KV 90℃ M
EN50264-3-1 1.8/3KV 90℃ MM
EN50264-3-1 3.6/6KV 90℃ MM

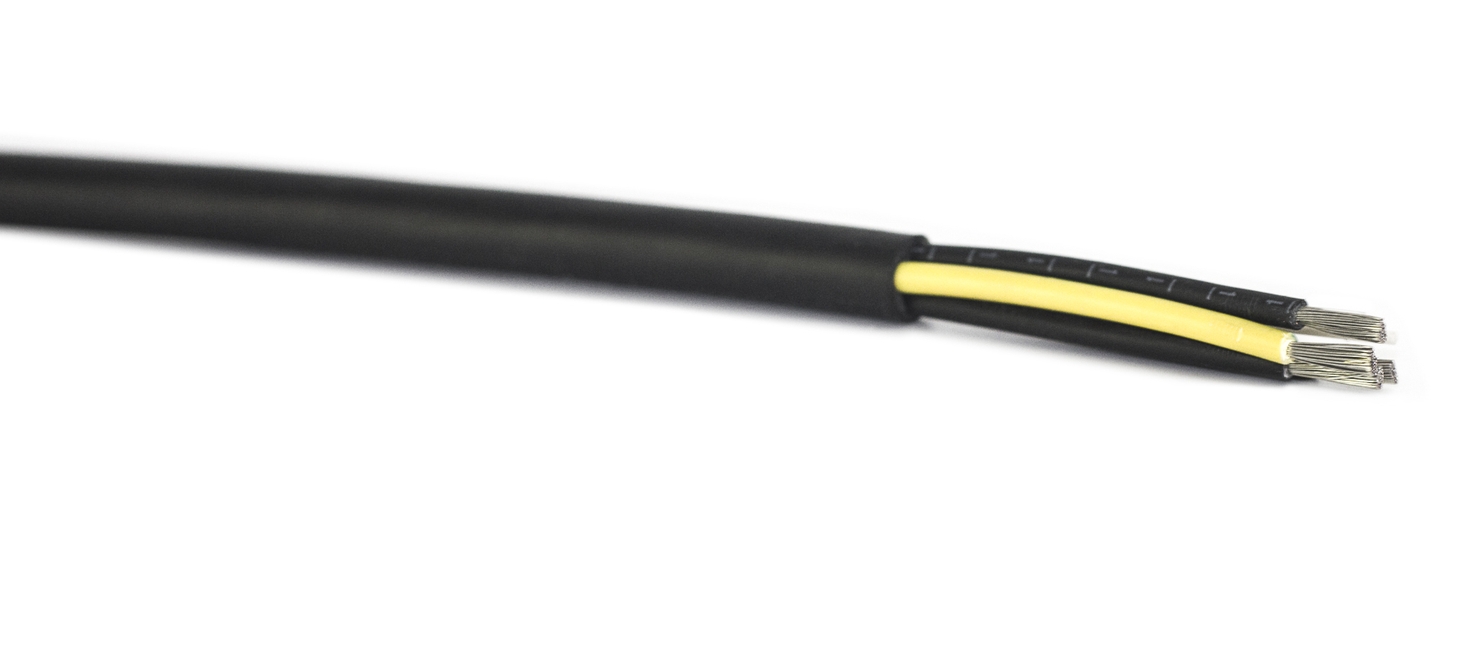

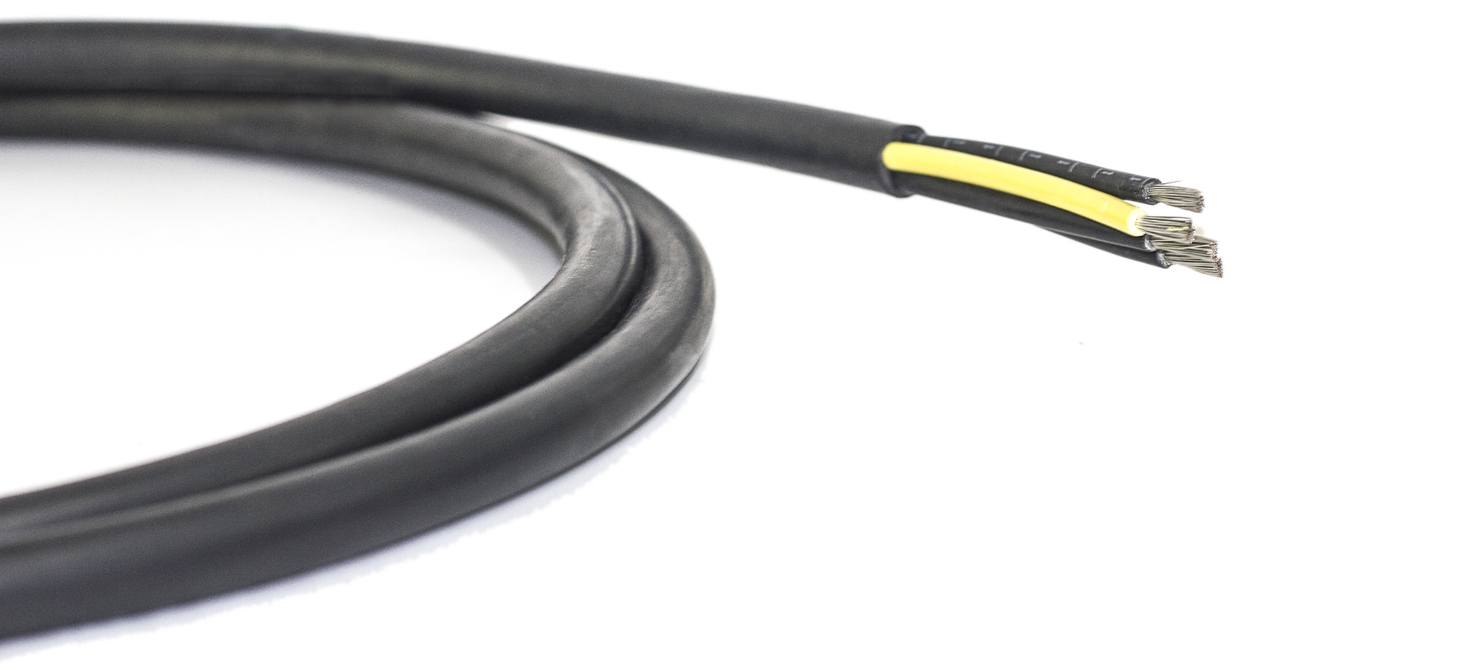

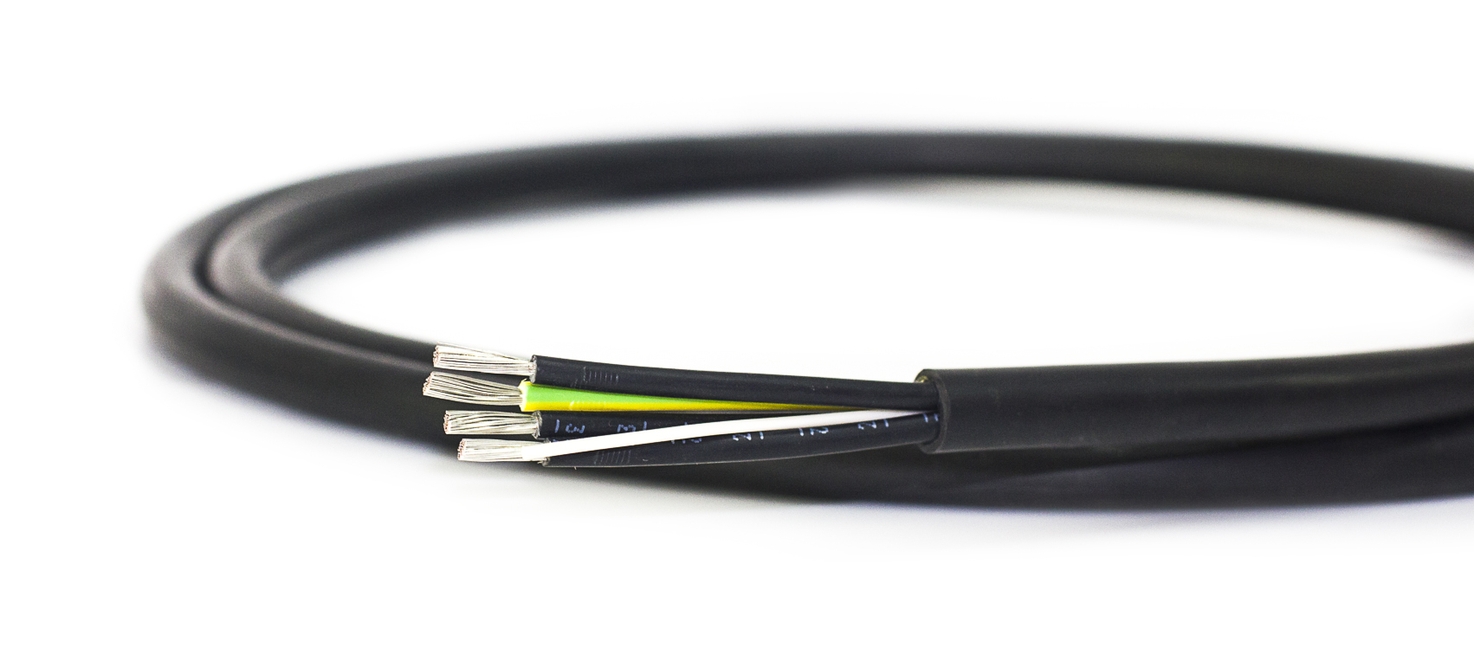

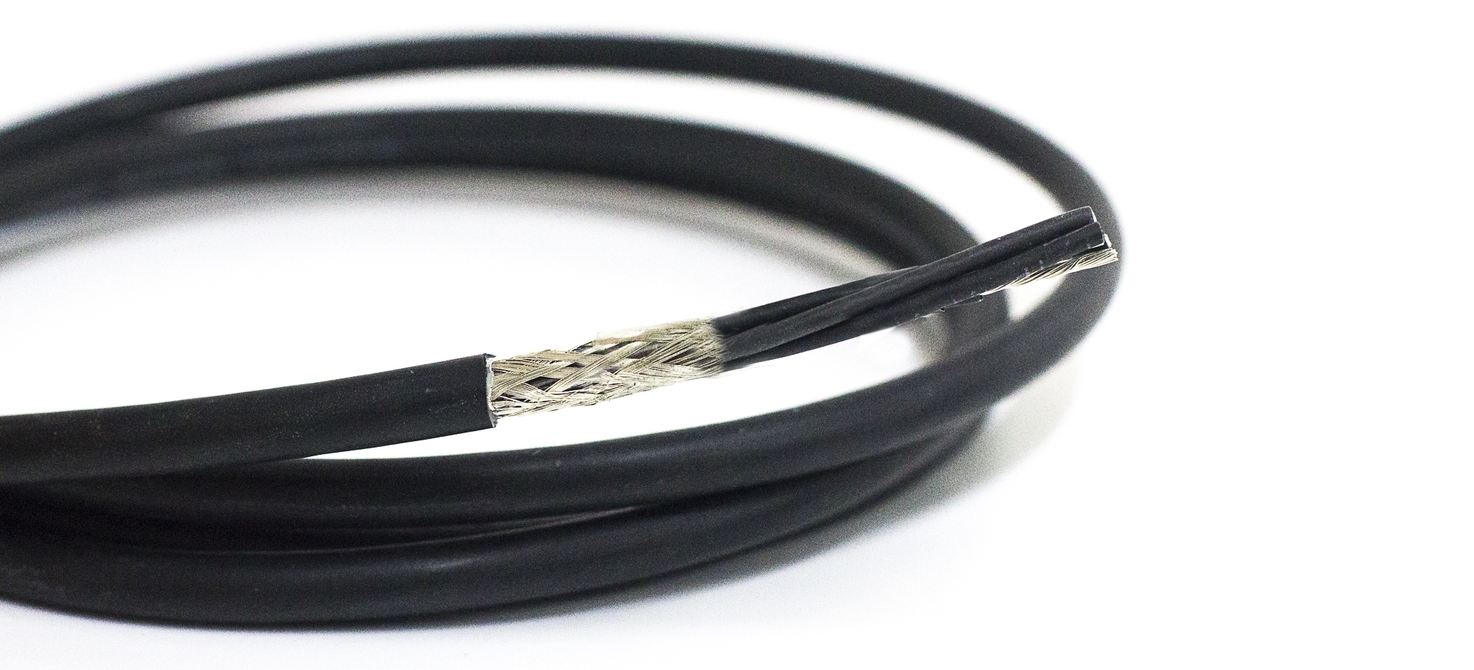

EN50264-3-2
EN50264-3-2 300/500V 90℃ MM

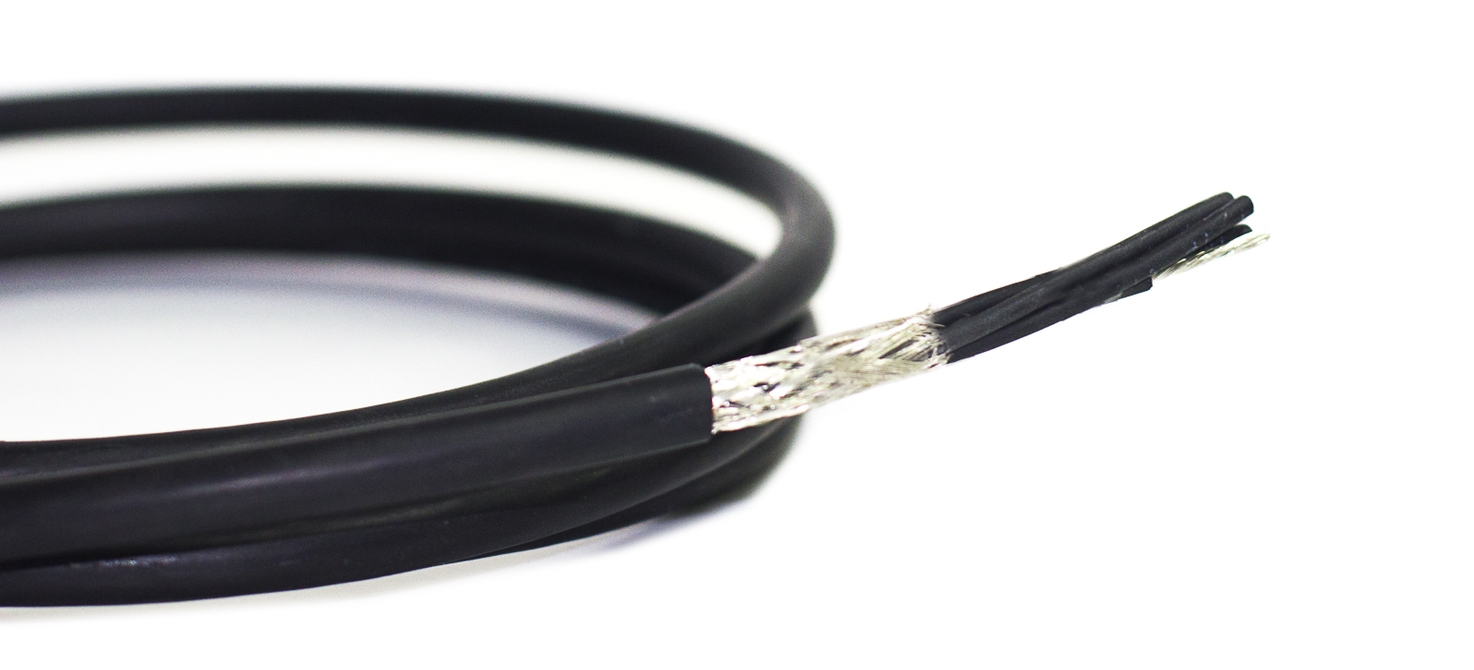

EN50264-3-2 300/500V 90℃ MM S
EN50264-3-2 0.6/1KV 90℃ MM

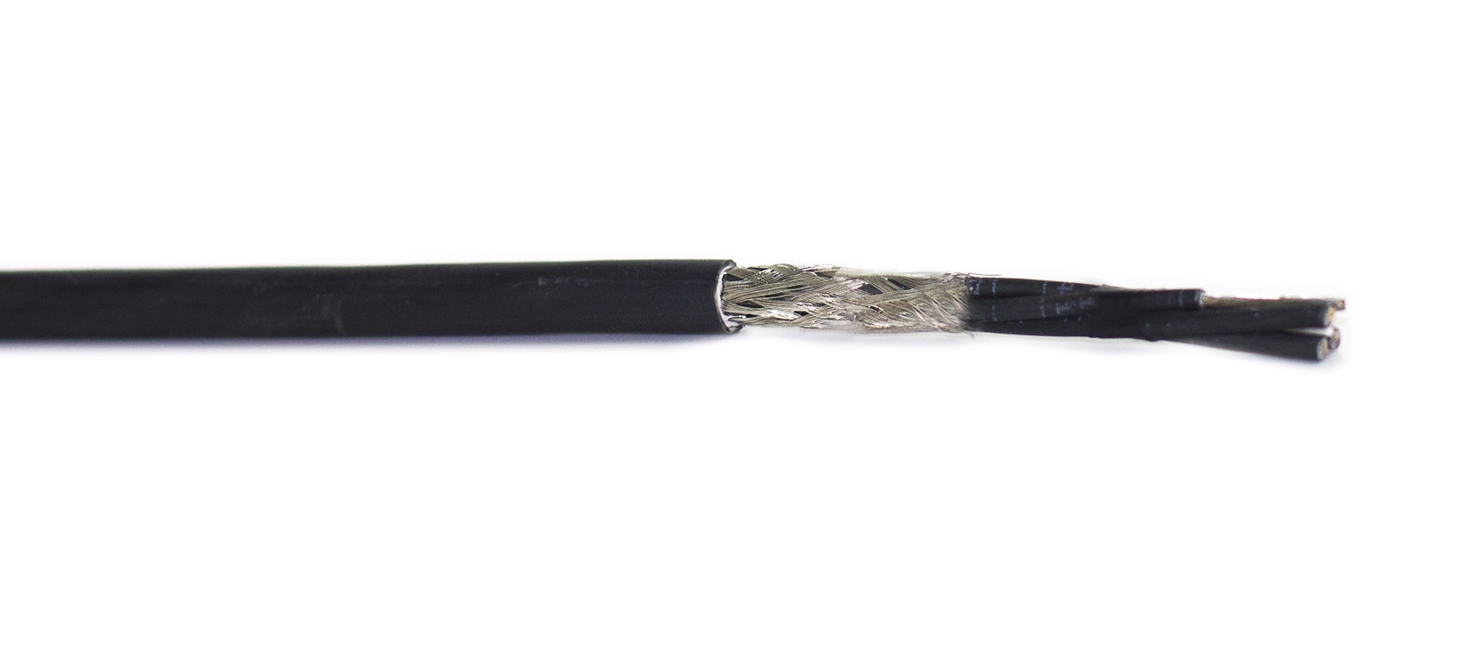

EN50264-3-2 0.6/1KV 90℃ MM S
EN50306
The EN50306 series specifies cables which, in the event of a fire, limit the risk to people and improve railway safety overall. It covers thin-wall insulated and sheathed cables based on halogen-free materials for railway rolling stock. Screening is provided in certain constructions, and sheaths with standard wall thickness are also available. In the event of a fire, cables compliant with EN50306 limit flame propagation and toxic gas emissions. In addition, these cables produce limited smoke when burning. This last characteristic minimises the loss of visibility in the event of a fire and helps to reduce evacuation times.
EN50306-2
EN50306-2 300/500V 105℃ M
EN50306-3

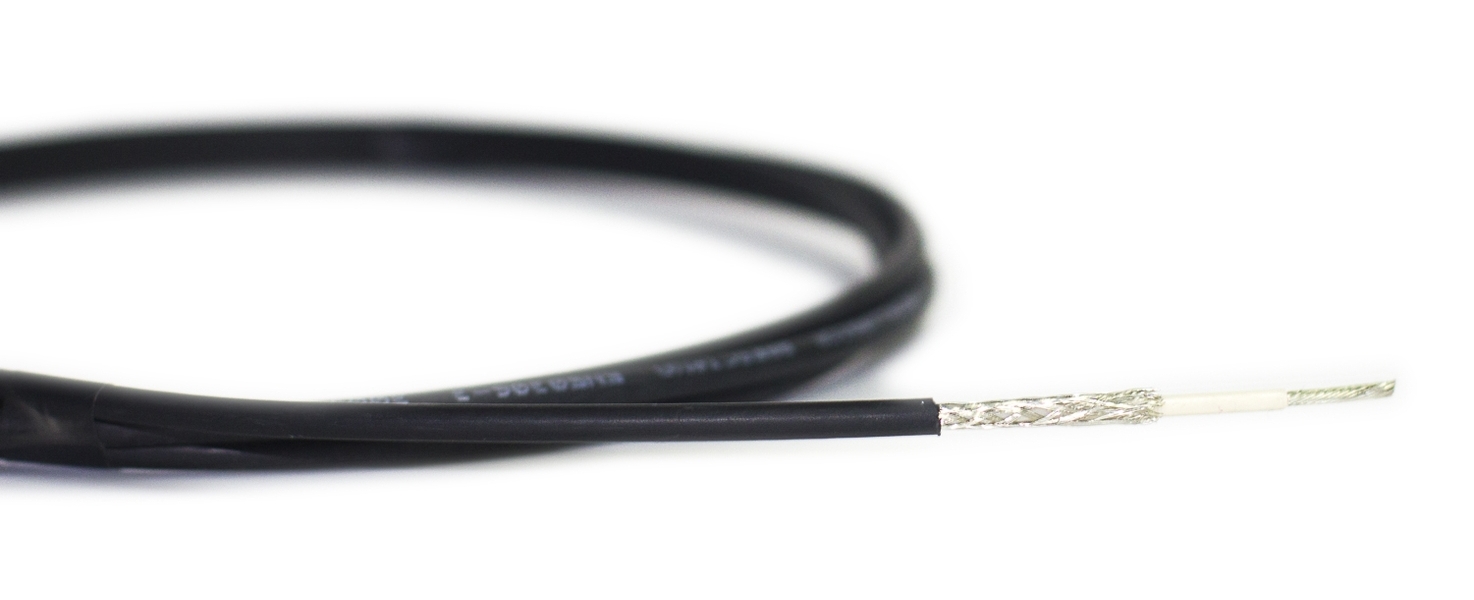

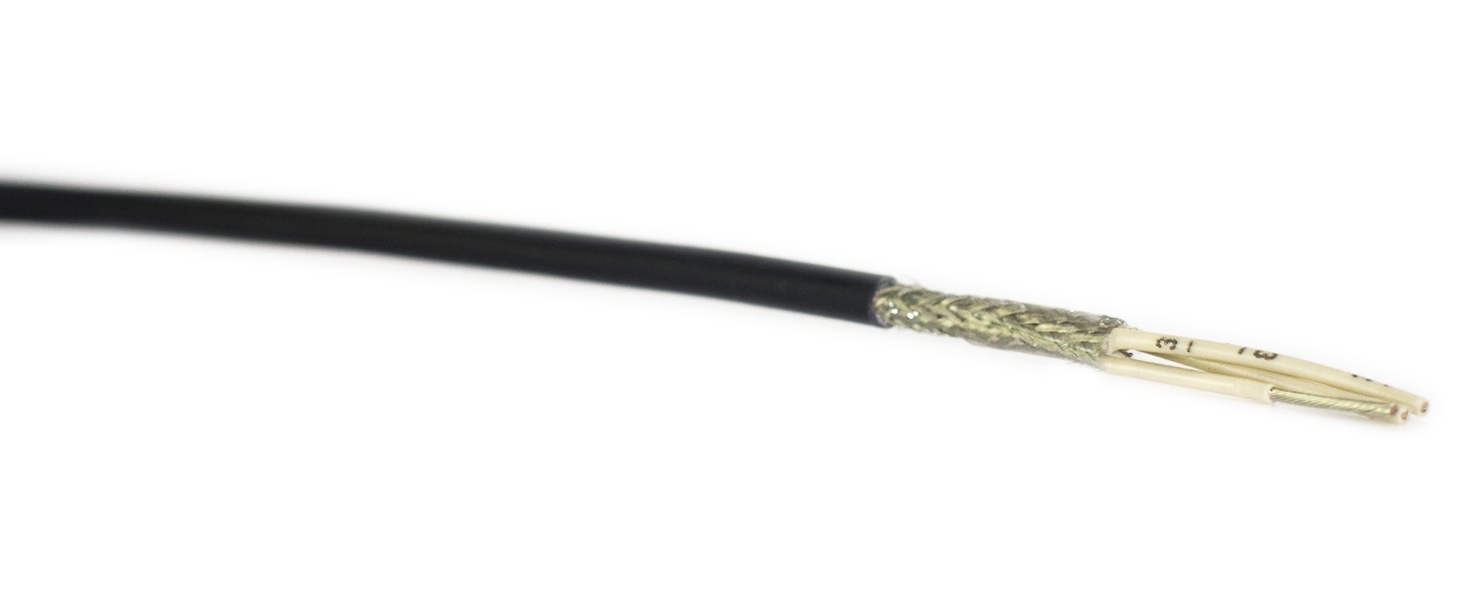

EN50306-3 300/500V 105℃ MM S

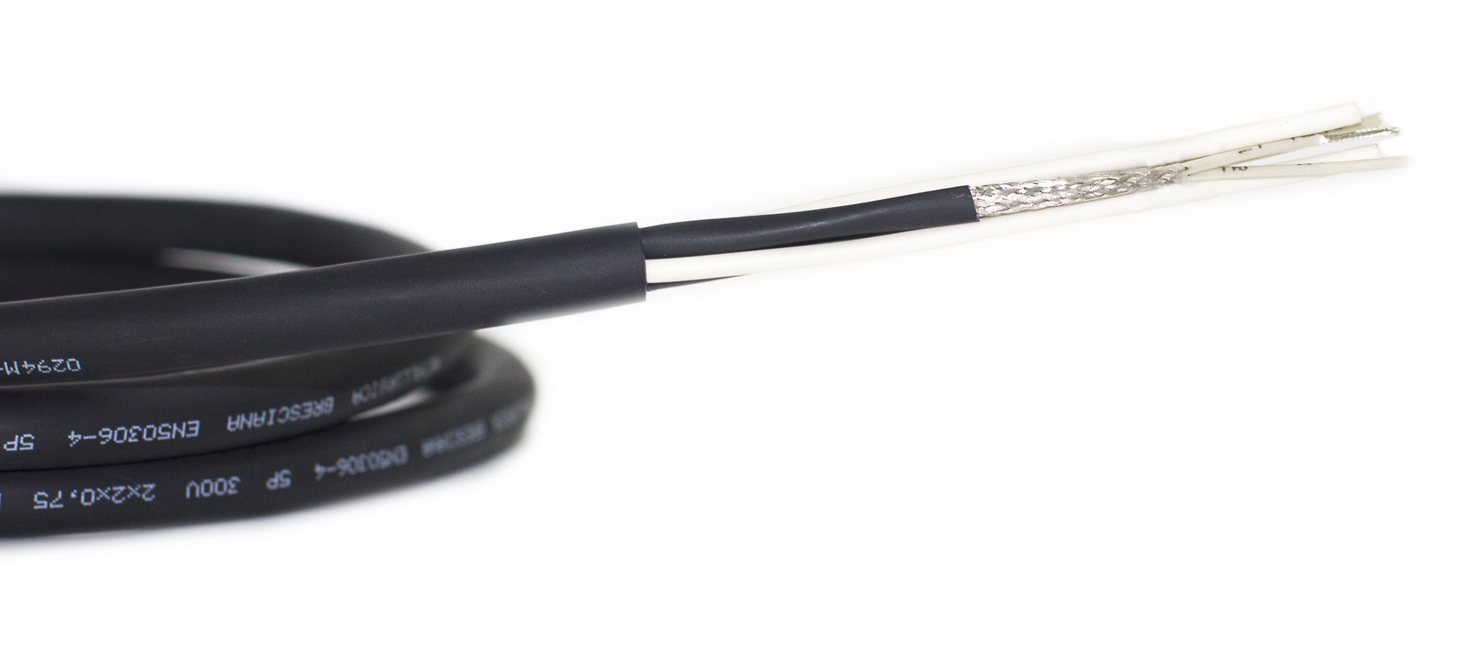

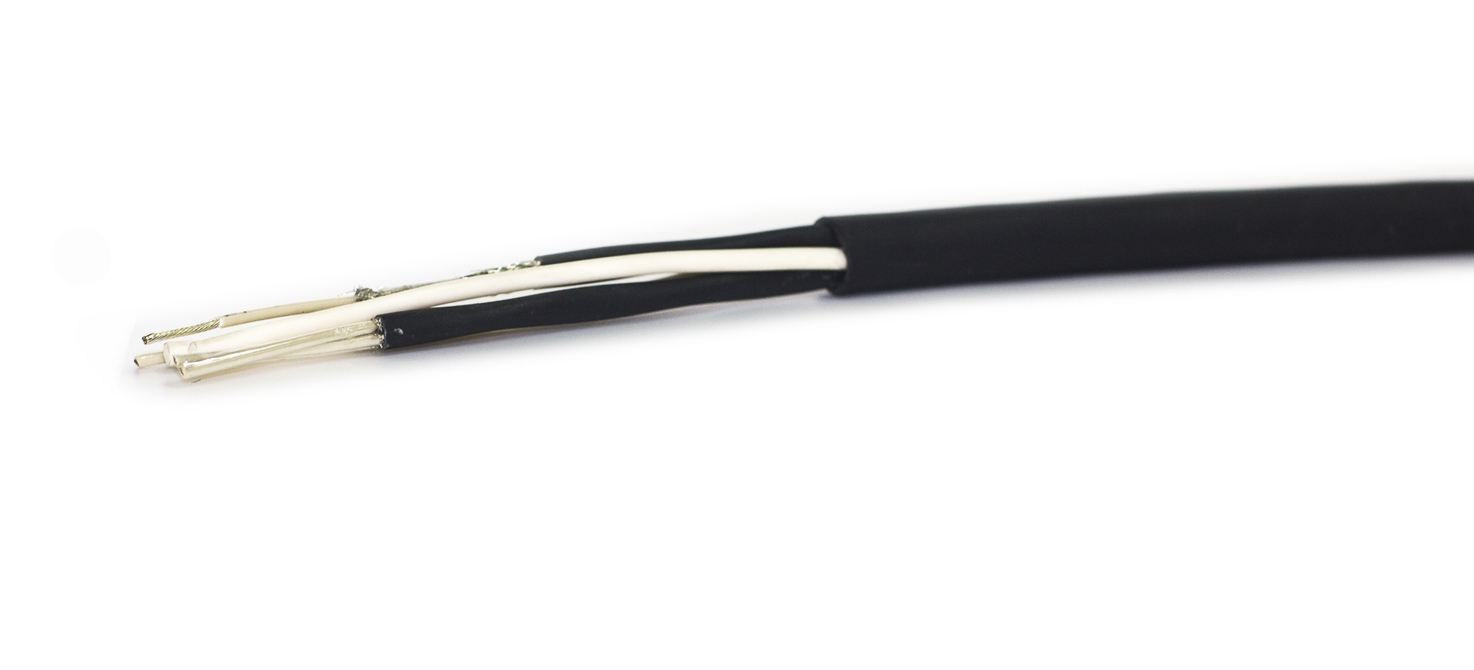

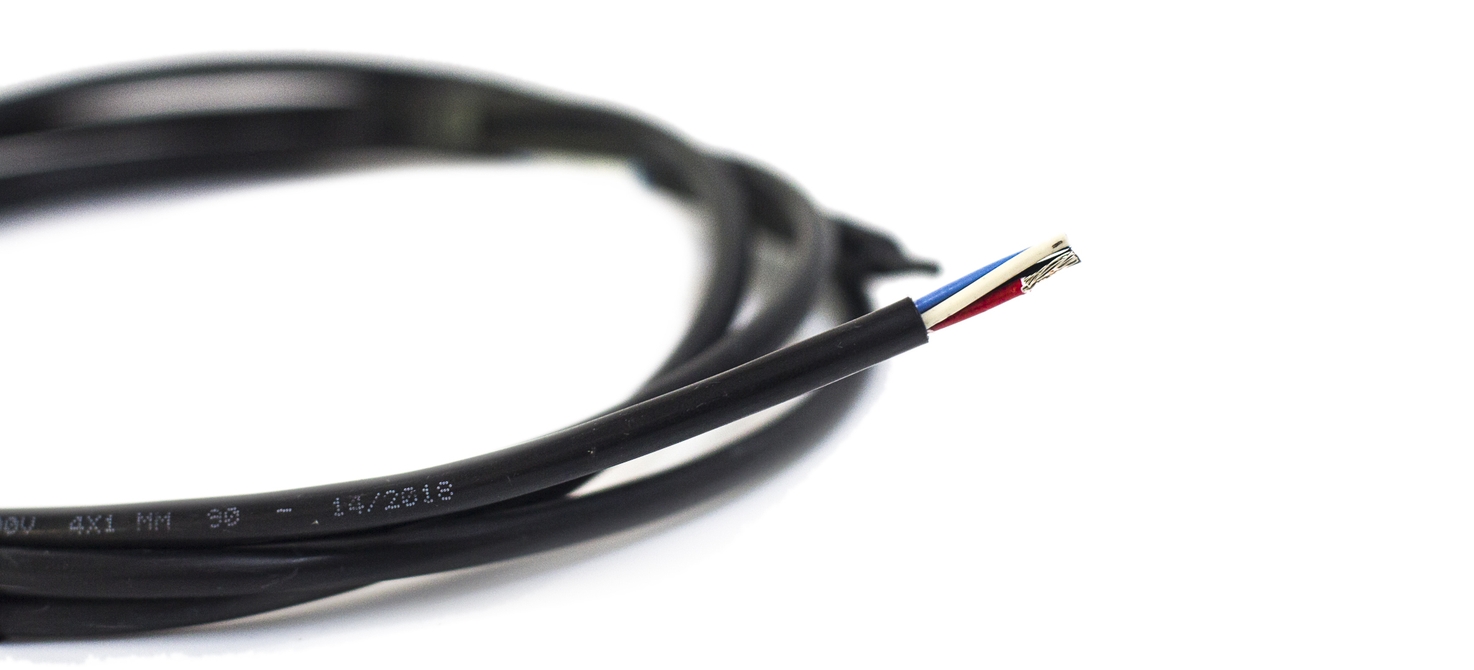

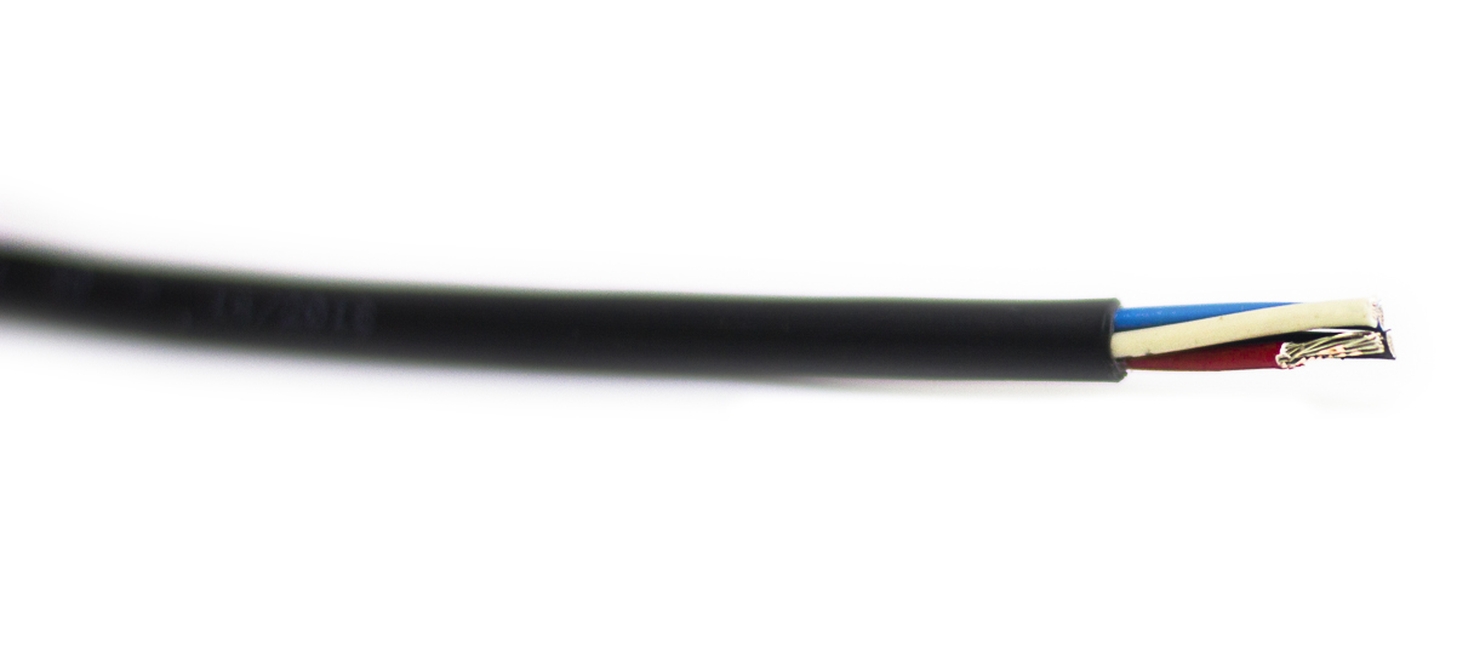

EN50306-4
EN50306-4 300/500V 1P/1E 90℃ MM
EN50306-4 300/500V 3P/3E 90℃ MM S
EN50306-4 300/500V 5P/5E 90℃ MM S
EN50306-4 300/500V 7P/7E 90℃ MM S
EN50382
The EN50382 series specifies cables for power and related circuits which, in the event of a fire, limit the risk to people and improve railway safety overall. It covers cables for railway rolling stock with standard insulation wall thickness, based on halogen-free materials that allow them to operate at high temperatures. In the event of a fire, cables compliant with EN50382 limit flame propagation and toxic gas emissions. In addition, these cables produce limited smoke when burning. This last characteristic minimises the loss of visibility in the event of a fire and helps to reduce evacuation times.

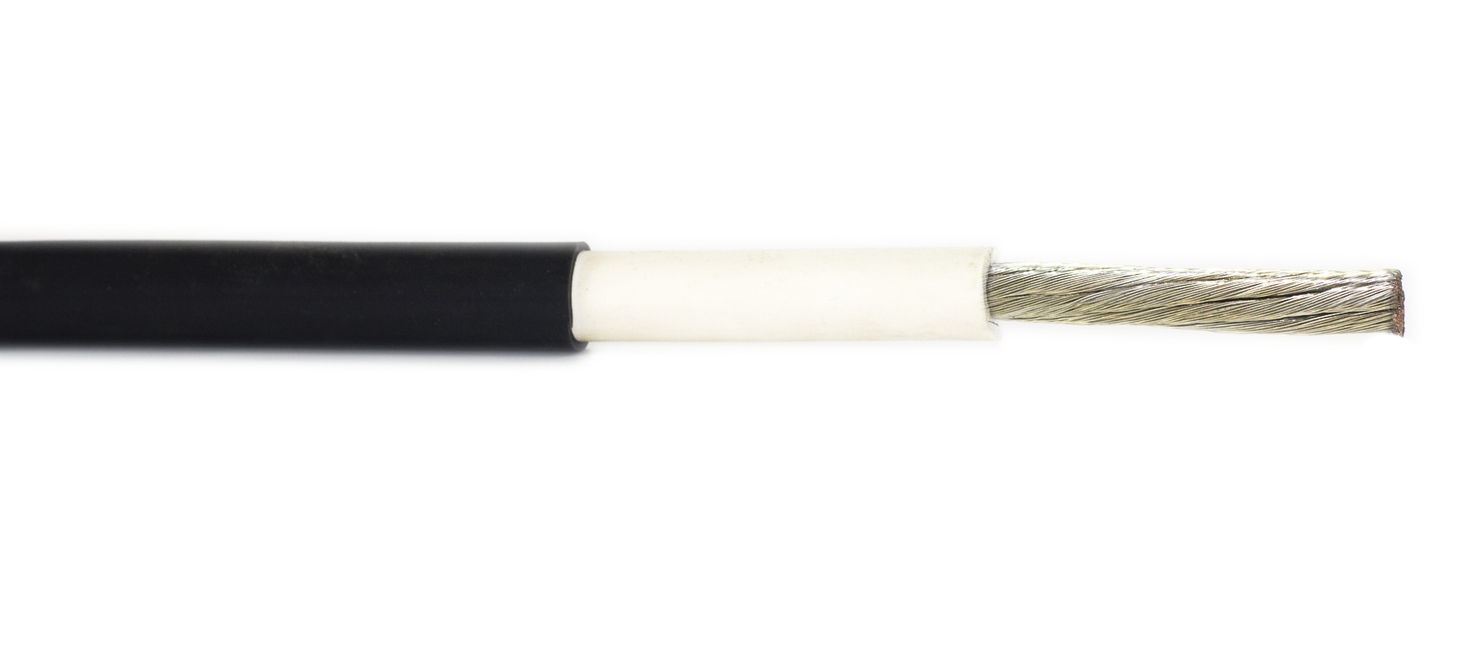

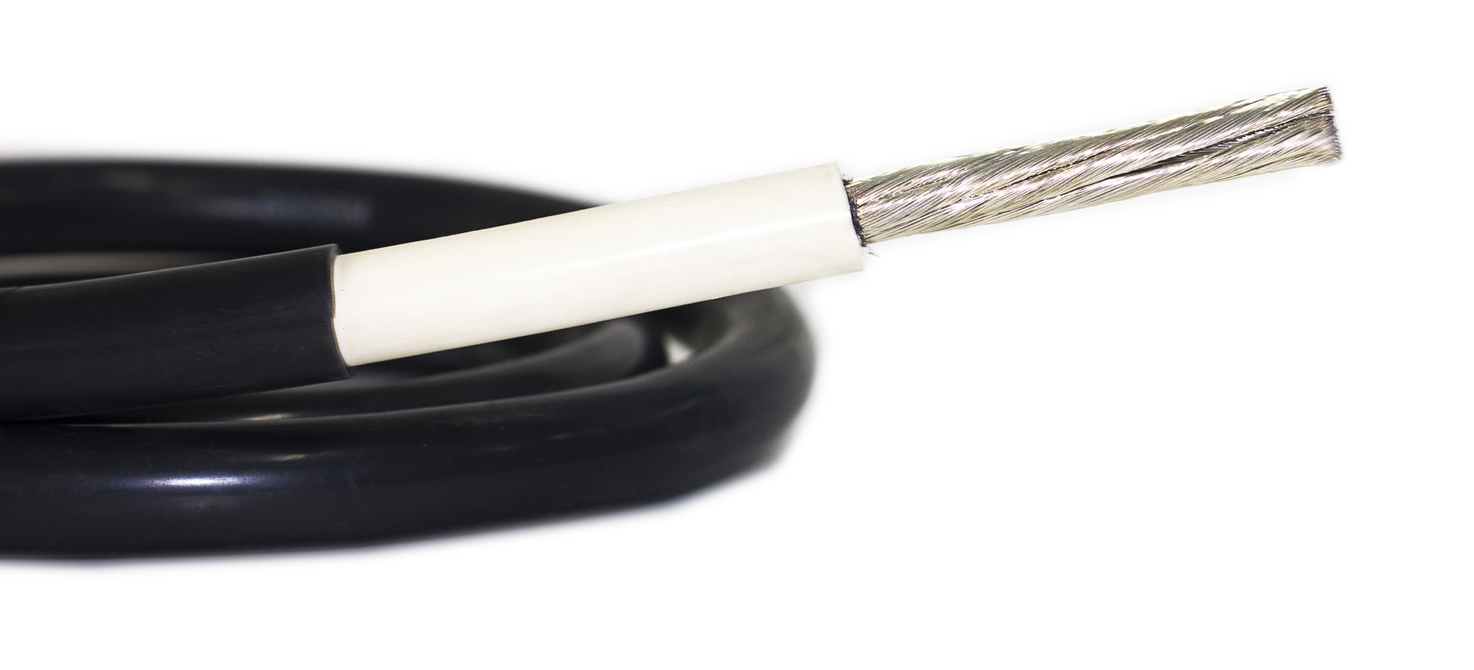

EN50382-2
EN50382-2 1.8/3KV 120℃/150℃ F
EN50382-2 1.8/3KV 120℃/150℃ FF

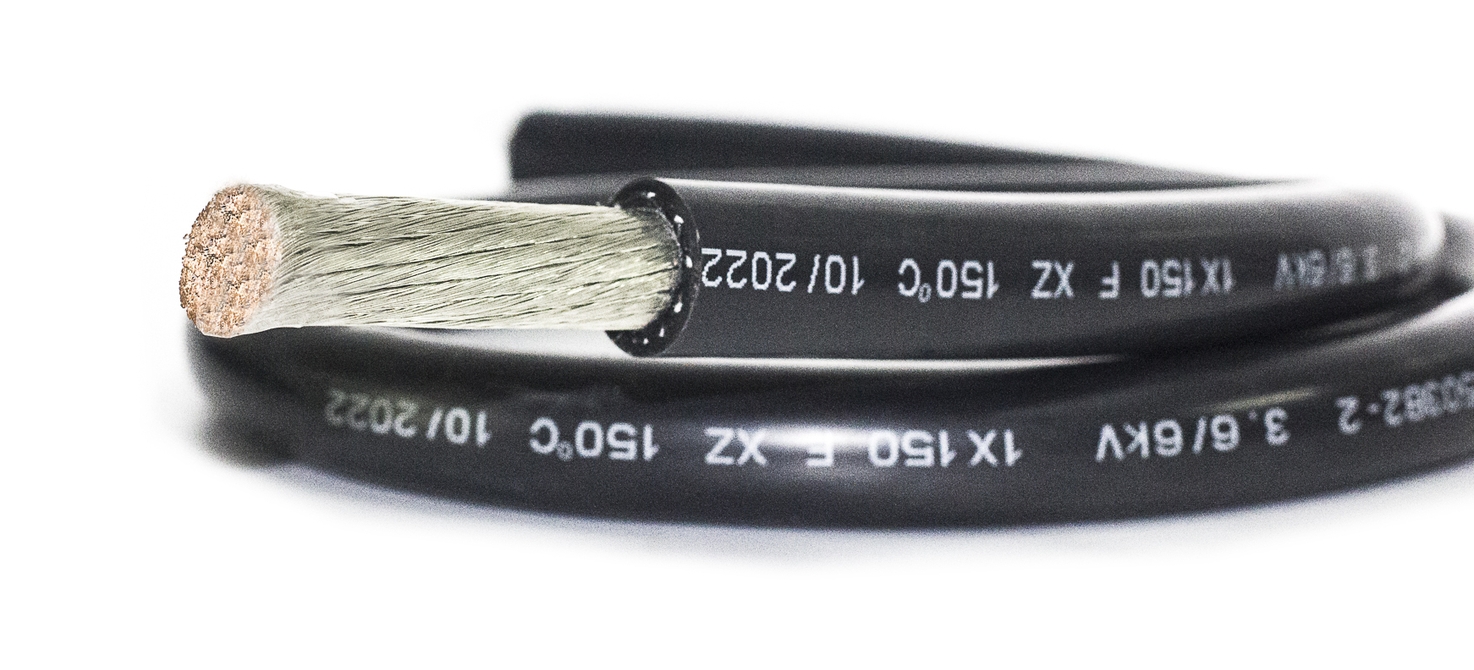

EN50382-2 3.6/6KV 120℃/150℃ F
EN50382-2 3.6/6KV 120℃/150℃ FF

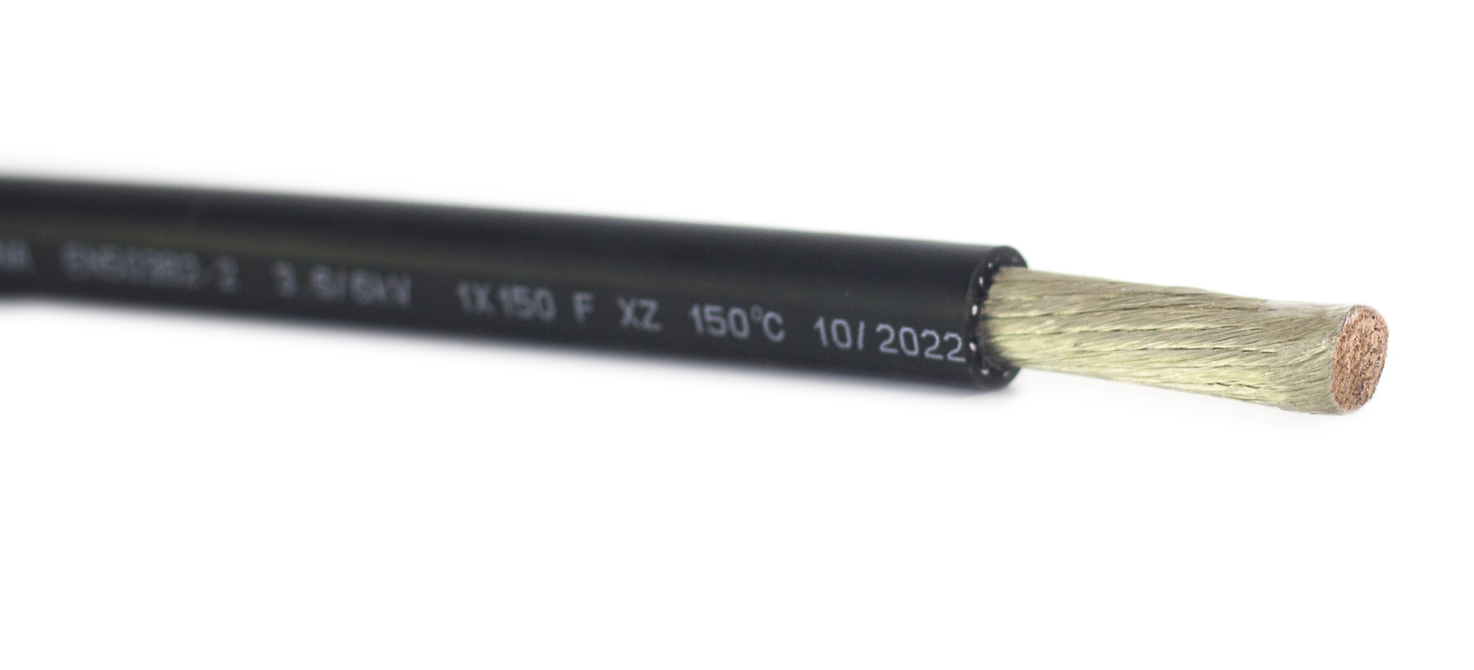

EN50382-2 Jumper 1.8/3KV 120℃/150℃ F XZ
EN50382-2 Jumper 3.6/6KV 120℃/150℃ F XZ
Benetrans EN cables

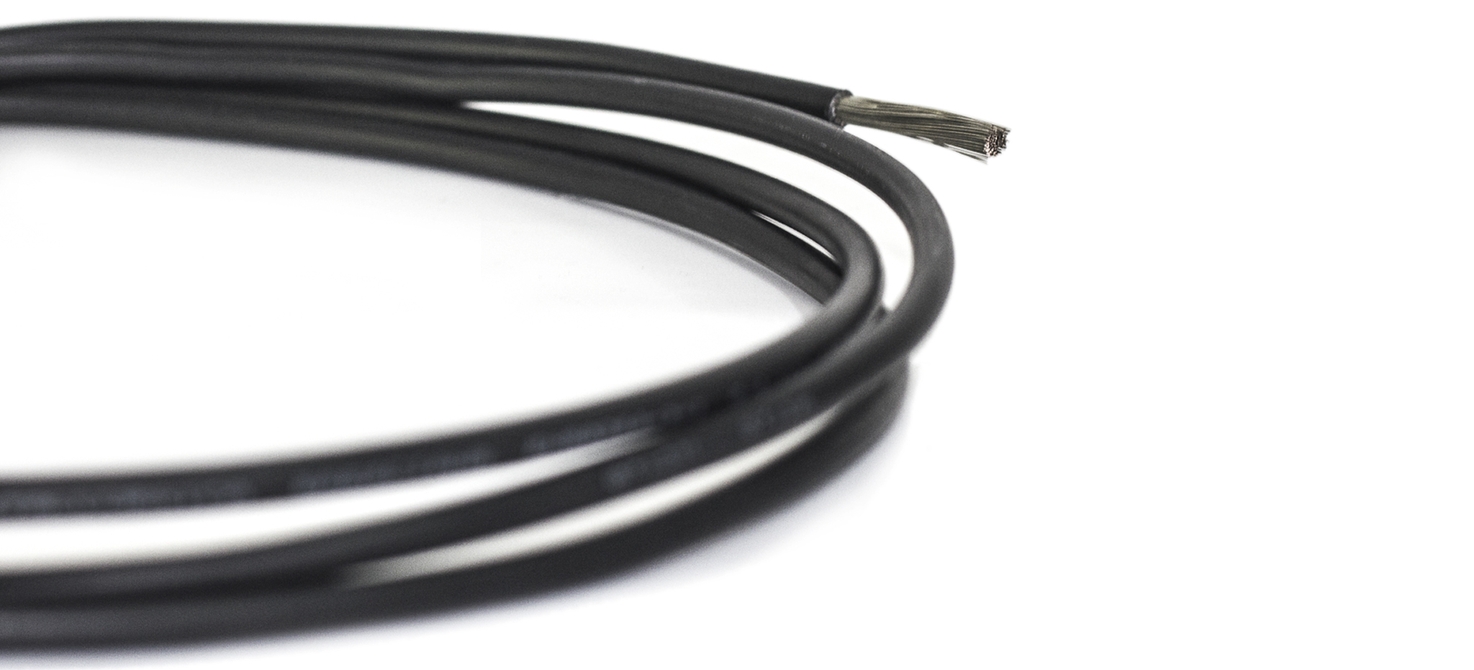

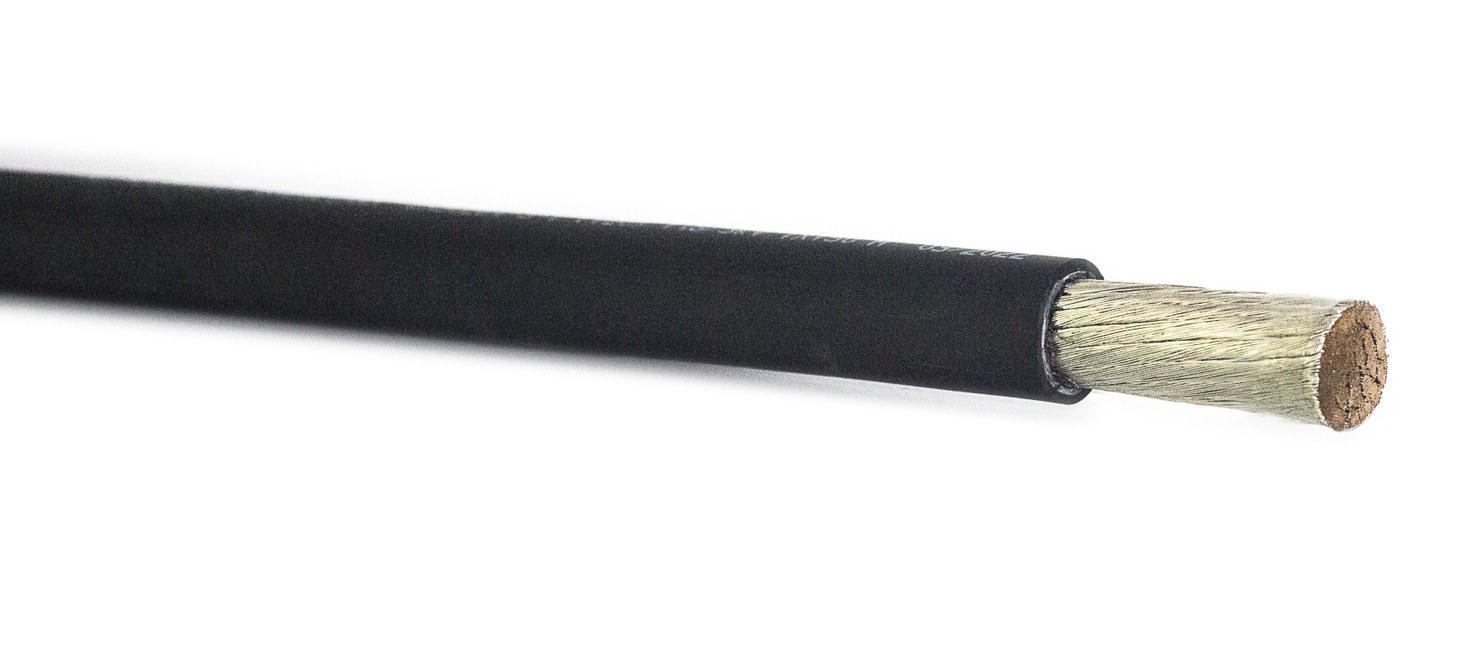

EN50264
Benetrans EN50264 cables each offer several important characteristics, such as tighter outer diameter tolerances, thinner walls and a wider temperature range, while still complying with the EN50264-3-1 cable standard. They give our customers more choice for specific applications or installation environments, adding further options beyond the EN standard cable range.

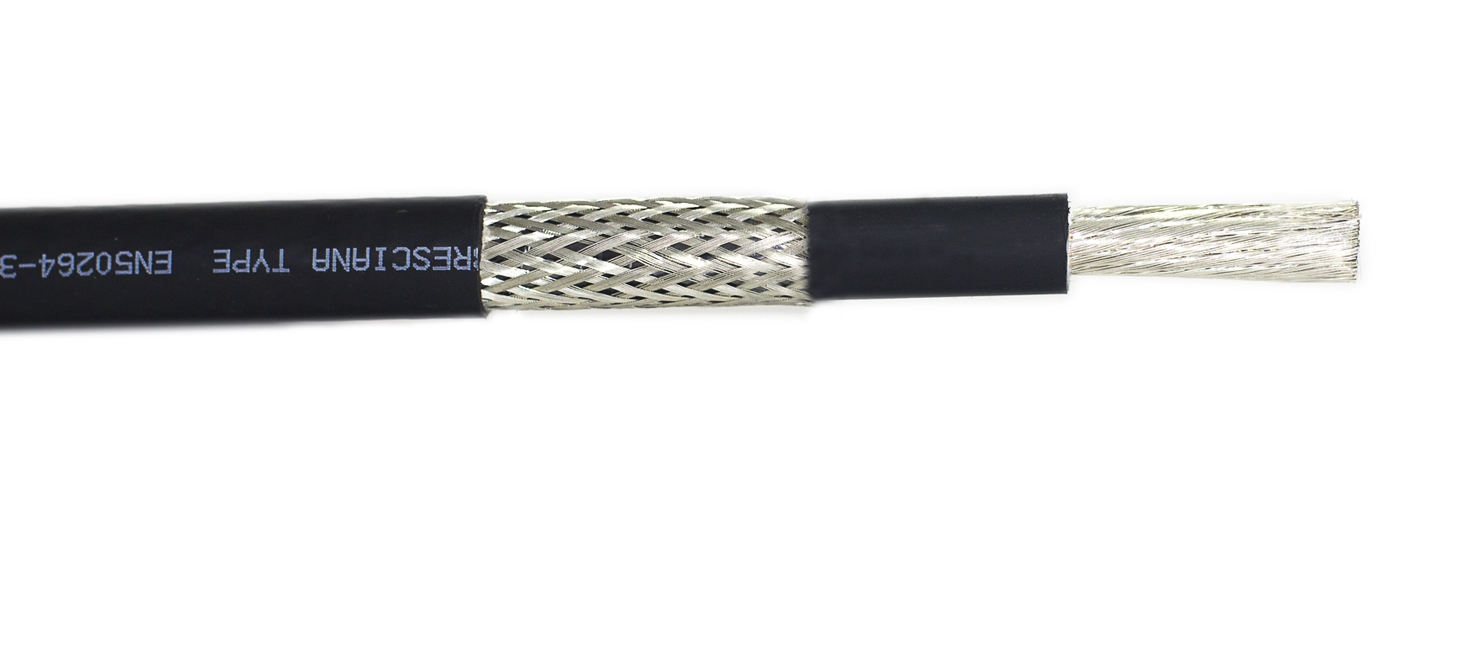

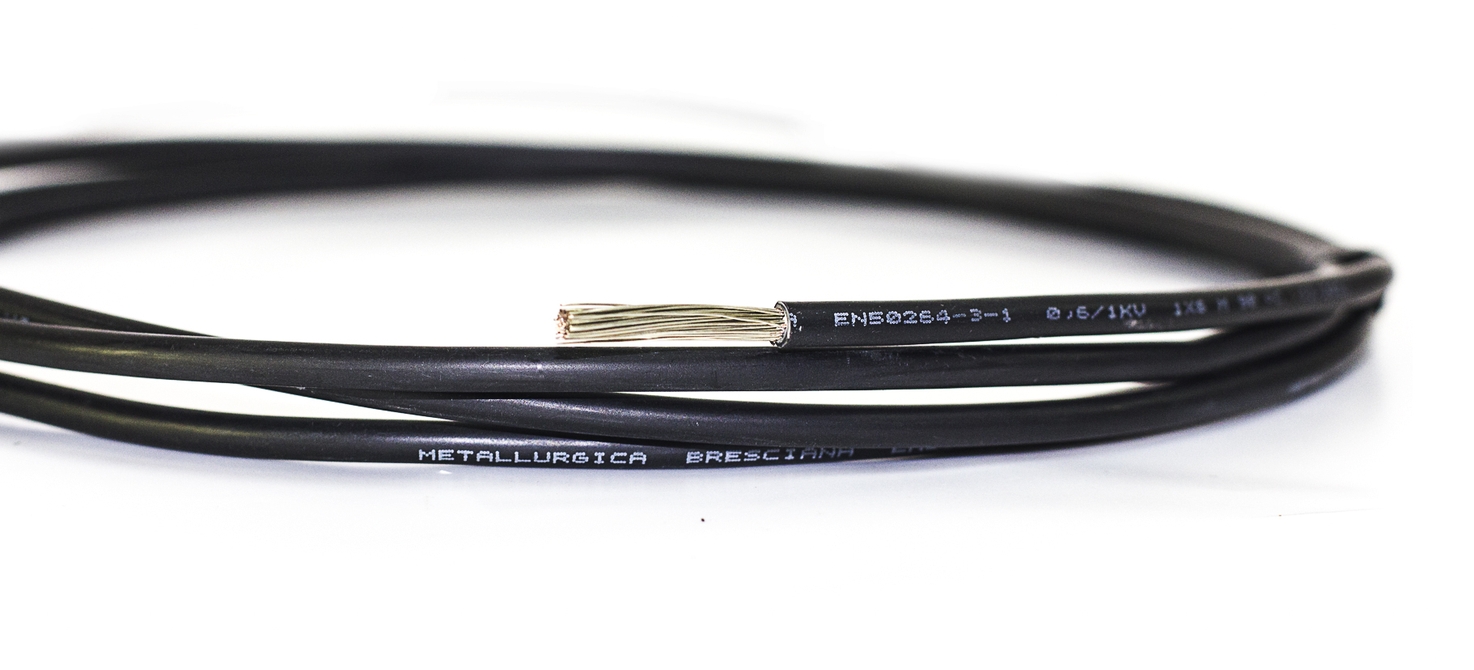

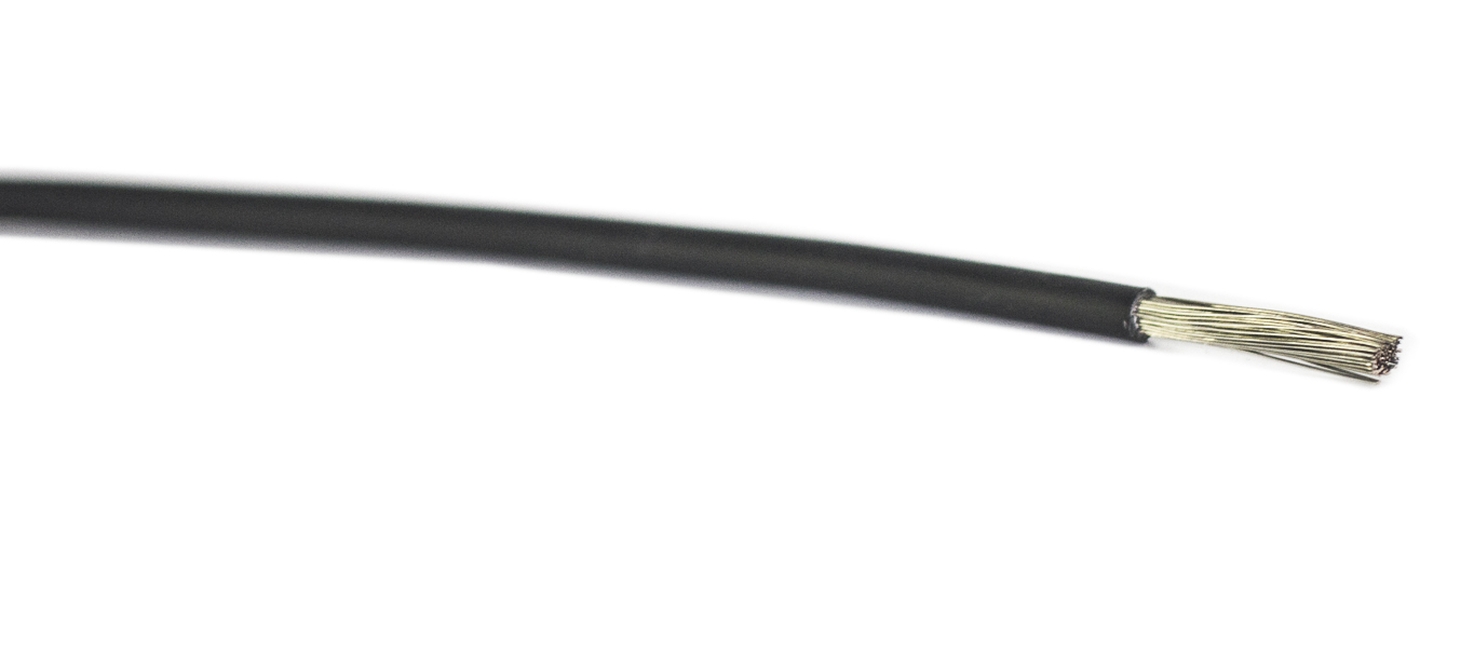

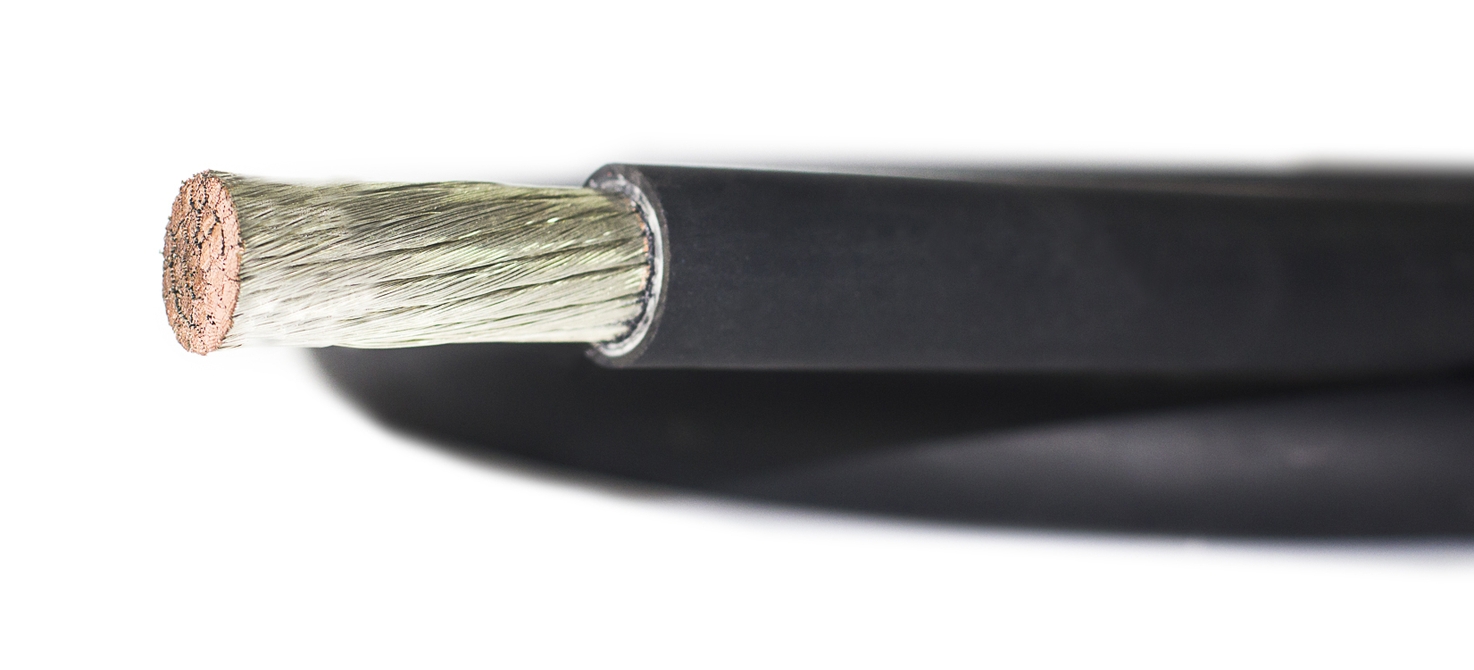

Benetrans EN50264-3-1 0.6/1KV 90℃ M
Benetrans EN50264-3-1 1.8/3KV 90℃ M
Benetrans EN50264-3-1 3.6/6KV 90℃ M

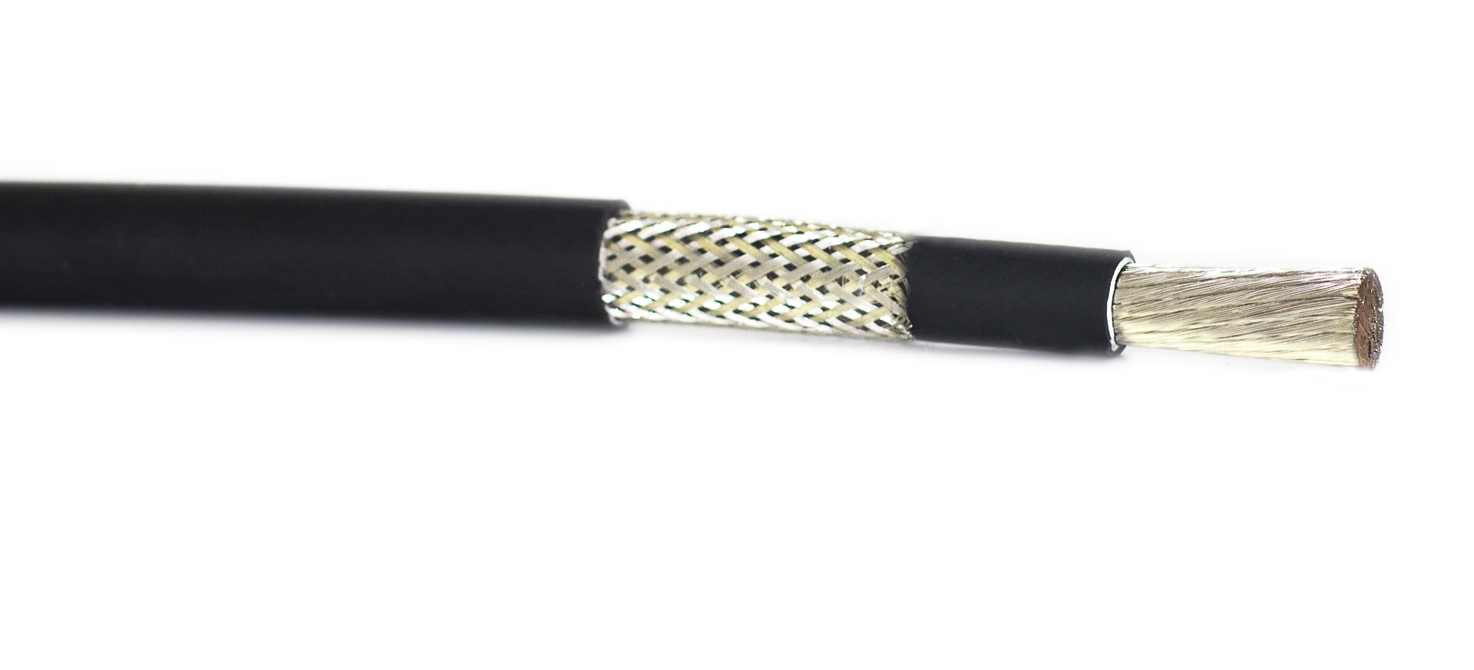

Benetrans EN50264-3-1 1.8/3KV 90℃ MM S
Benetrans EN50264-3-1 3.6/6KV 90℃ MM S
Benetrans EN50264-3-1 1.8/3KV 120℃ M
Benetrans EN50264-3-1 3.6/6KV 120℃ MM

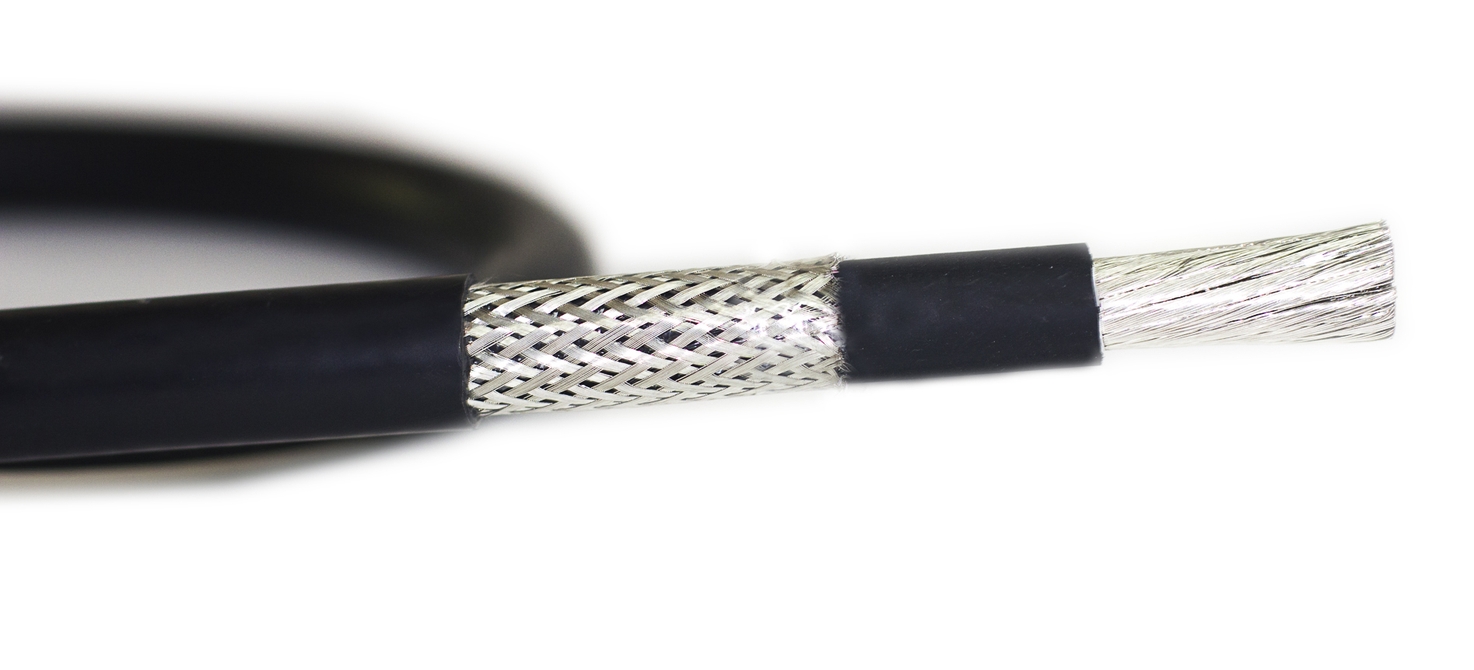

Benetrans EN50264-3-1 1.8/3KV 120℃ MM S
Benetrans EN50264-3-1 3.6/6KV 120℃ MM S

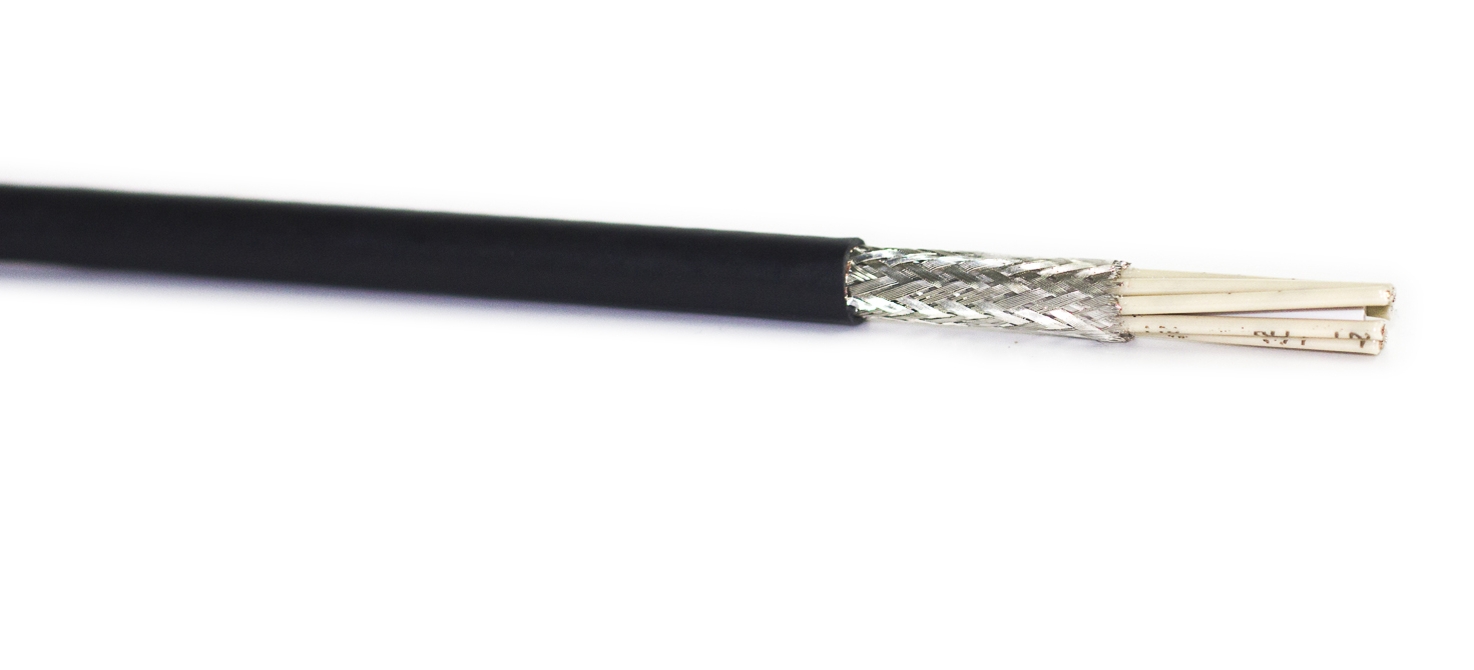

EN50306
Benetrans EN50306 cables each offer several important characteristics, such as a higher rated voltage and a dual-wall insulation system, while still complying with the EN50306 cable standard, thus giving our customers more choice beyond the standard EN cable range for specific applications or installation environments.
Benetrans EN50306-2 0.6/1KV 105℃ M
Benetrans EN50306-4 0.6/1KV 90℃ MM

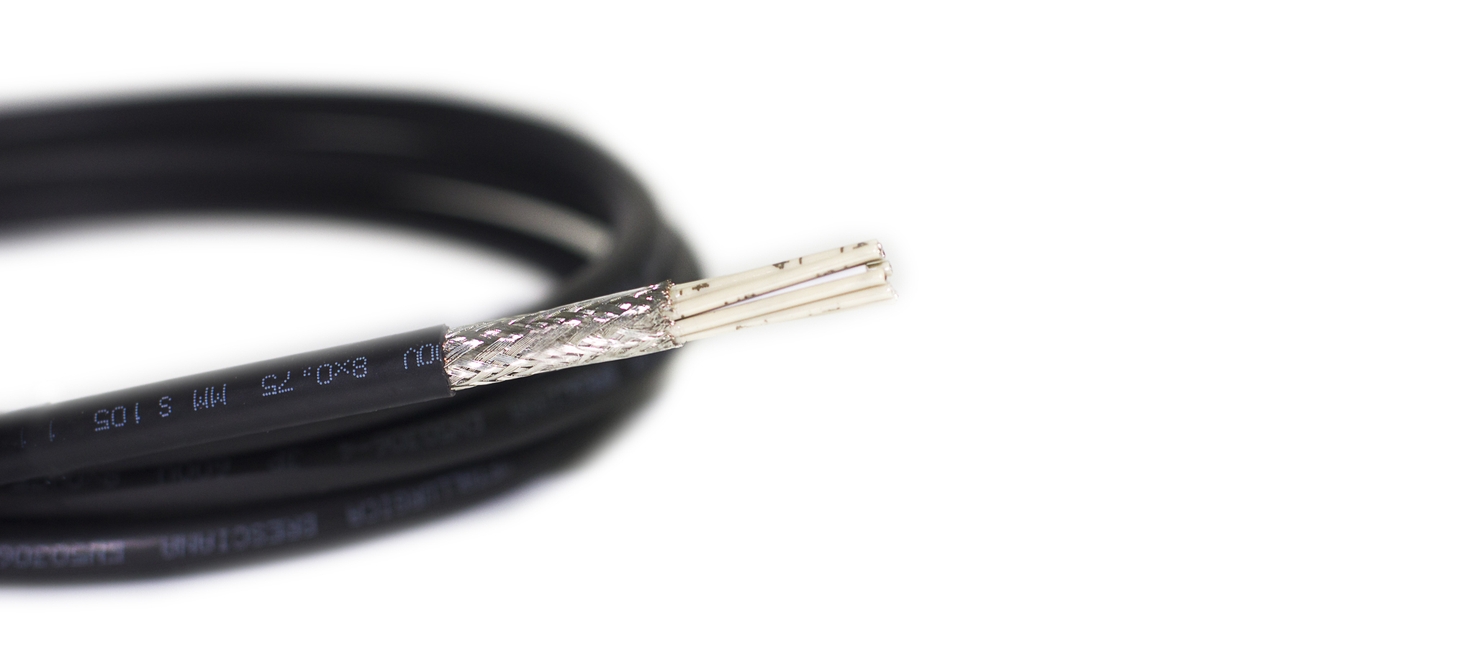

Benetrans EN50306-4 0.6/1KV 90℃ MM S
Data bus cables
Rolling stock is a typically demanding application for data bus cables. The cables must be low smoke, zero halogen and flame retardant while still providing reliable, high-speed data transmission. These cables also have to work in the same harsh environments as the rolling stock itself, while meeting rapidly growing data volumes and transmission rates.

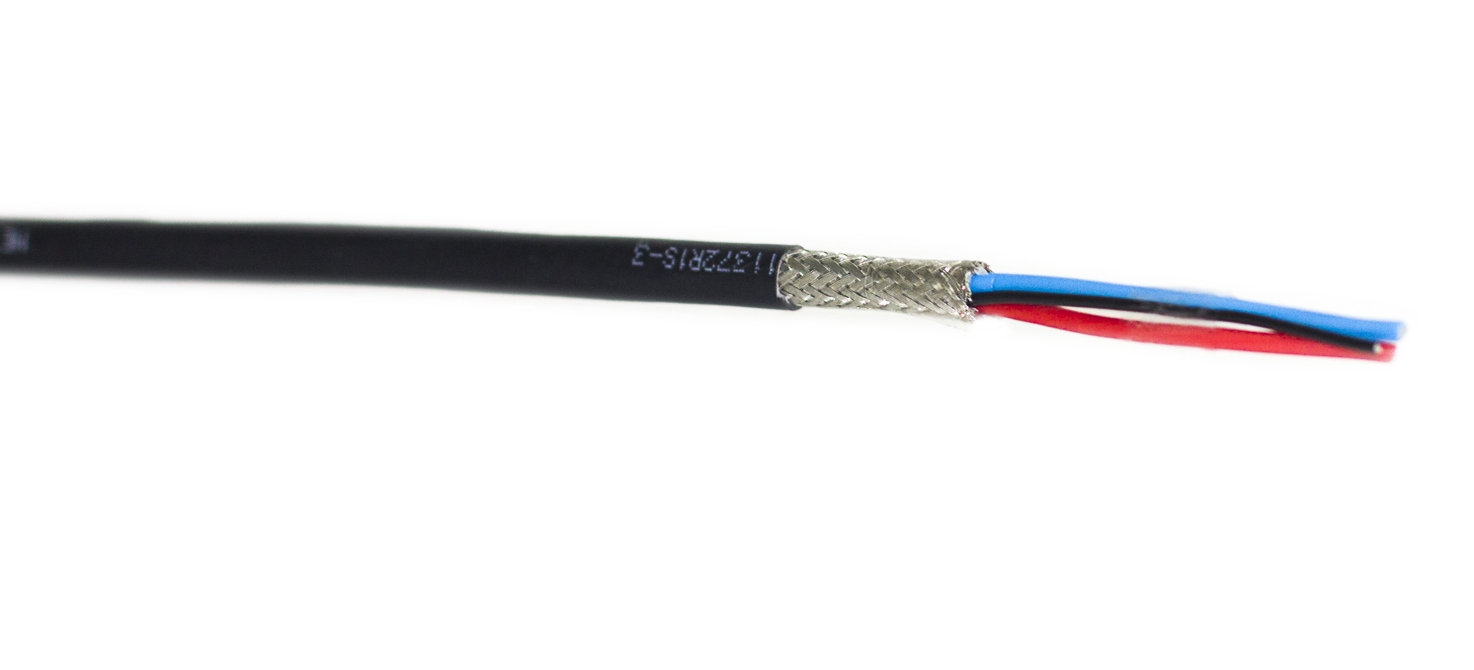

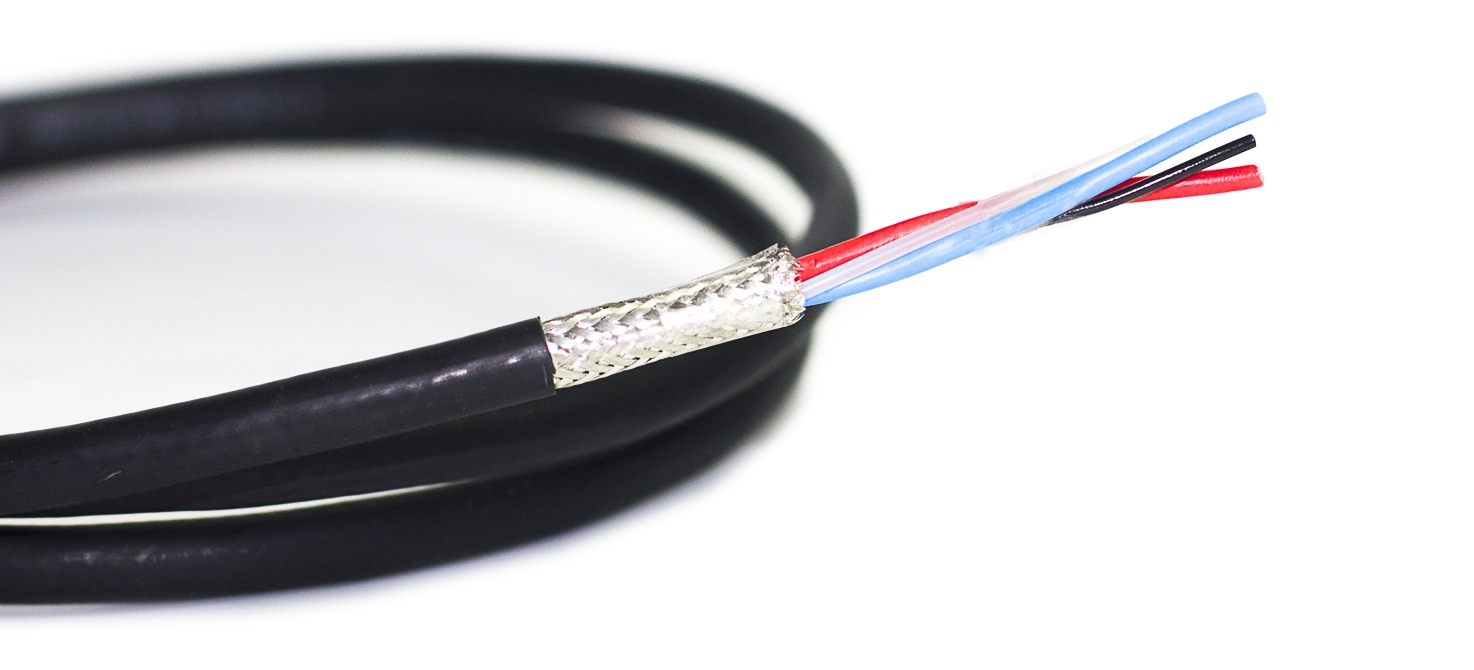

Bus cables
120Ω 1X2X0.5mm2 + 1X0.5mm2 90℃
120Ω 2X2X0.34mm2 90℃

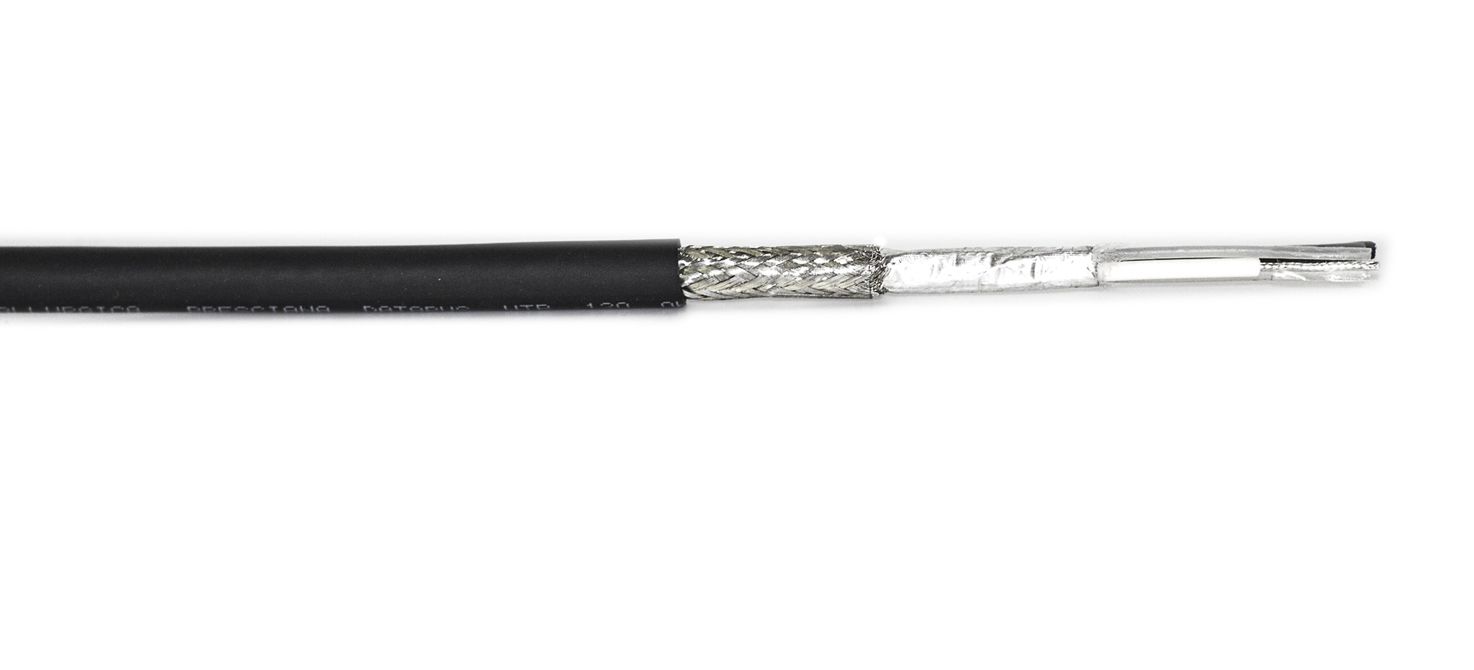

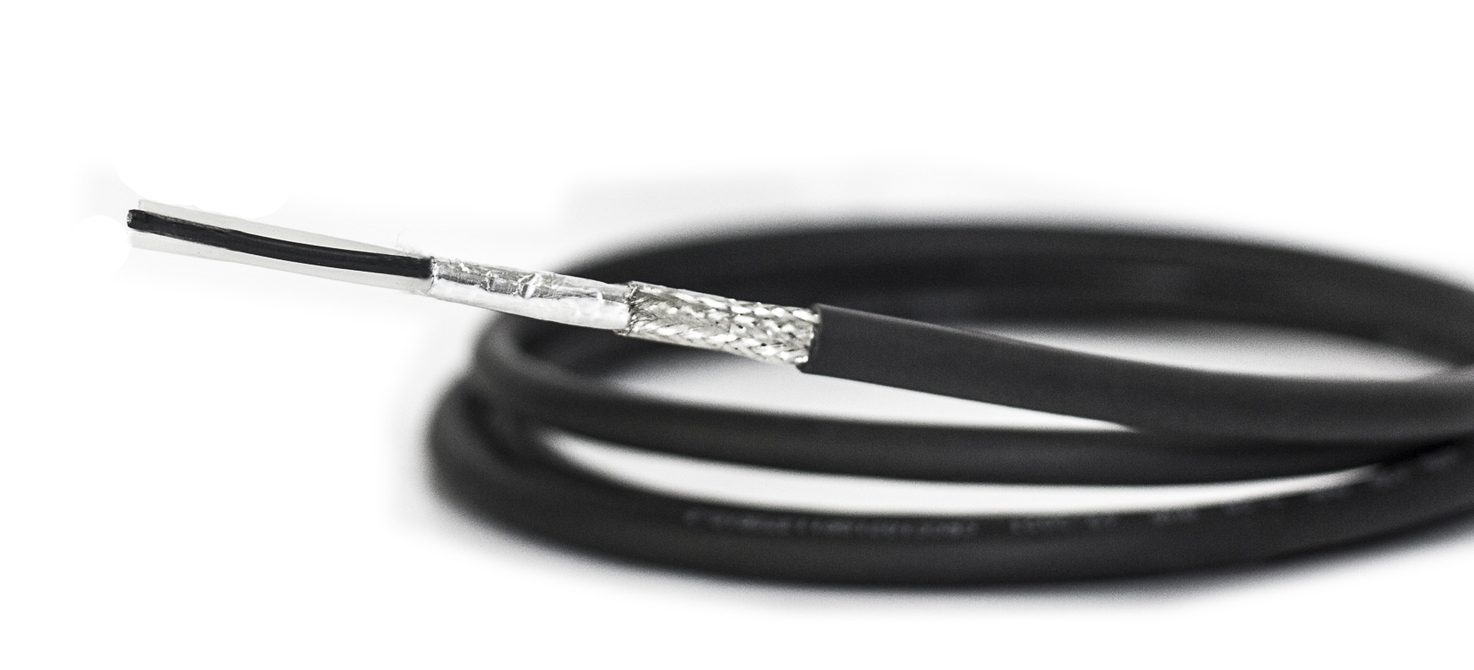

WTB cables
120Ω 2X0.75mm2 90℃

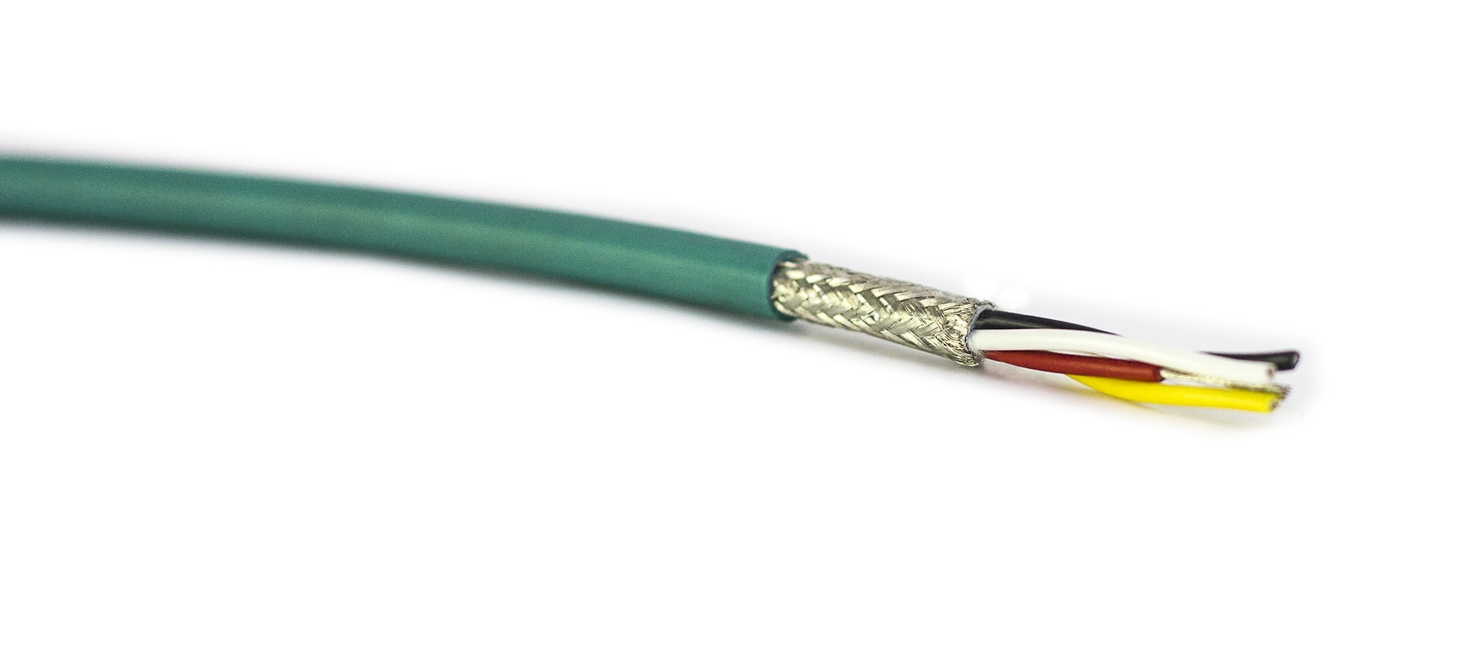

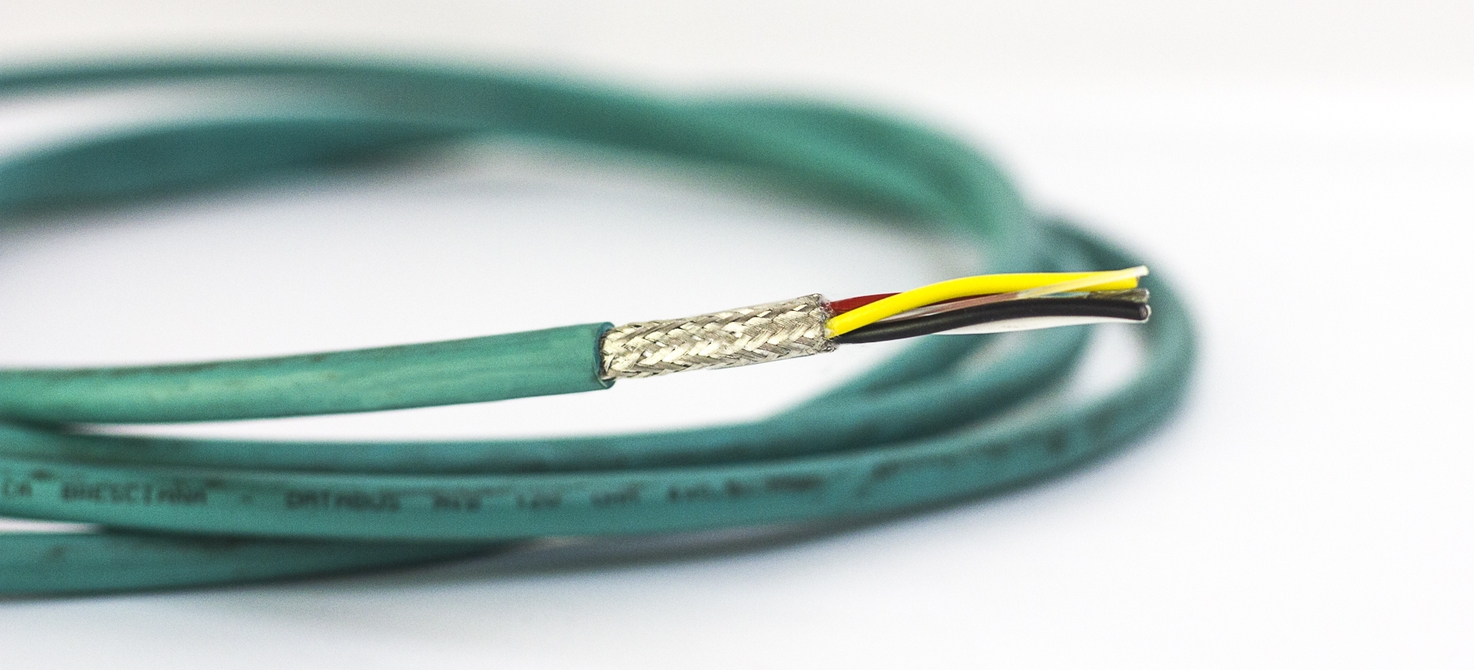

MVB cables
120Ω 4X0.5mm2 90℃
120Ω 1X4X0.5mm2 + 4X1X0.25mm2 90℃
TwinAx
120Ω 2X0.5mm2 90℃
120Ω 2X0.5mm2 + 1X1.5mm2 90℃

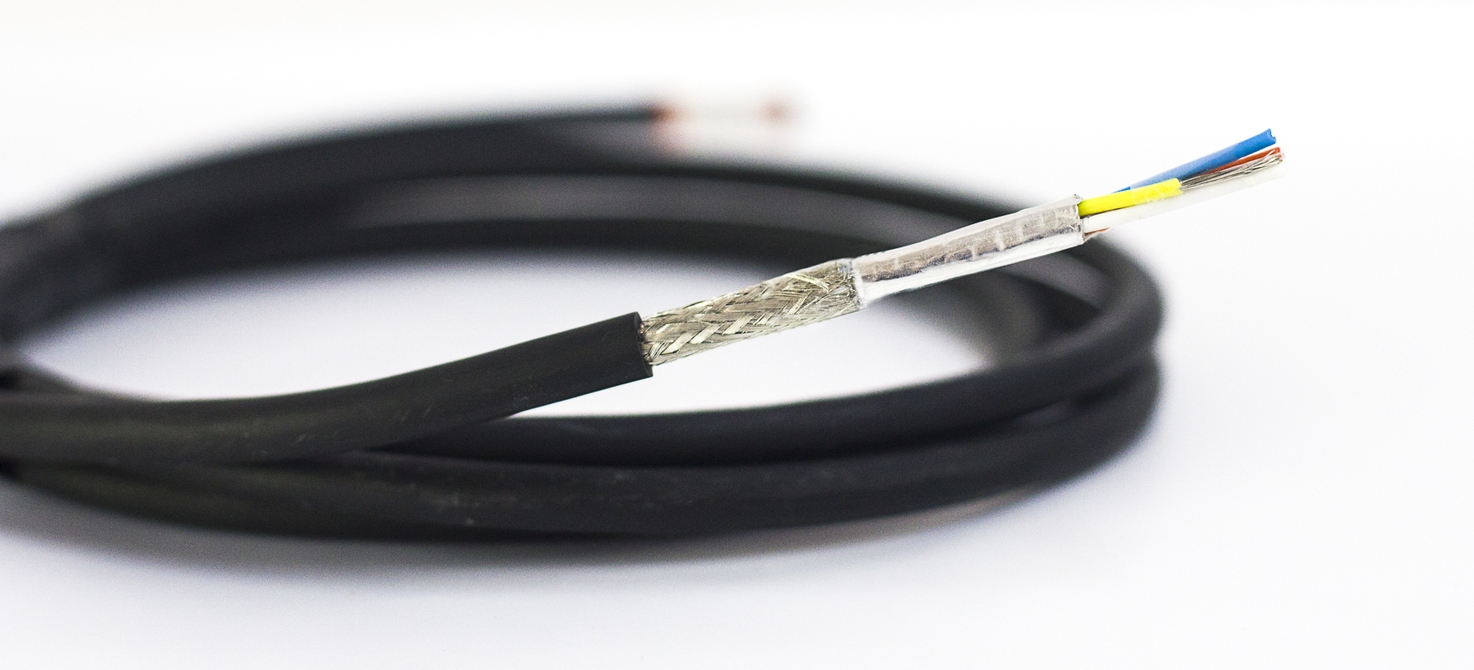

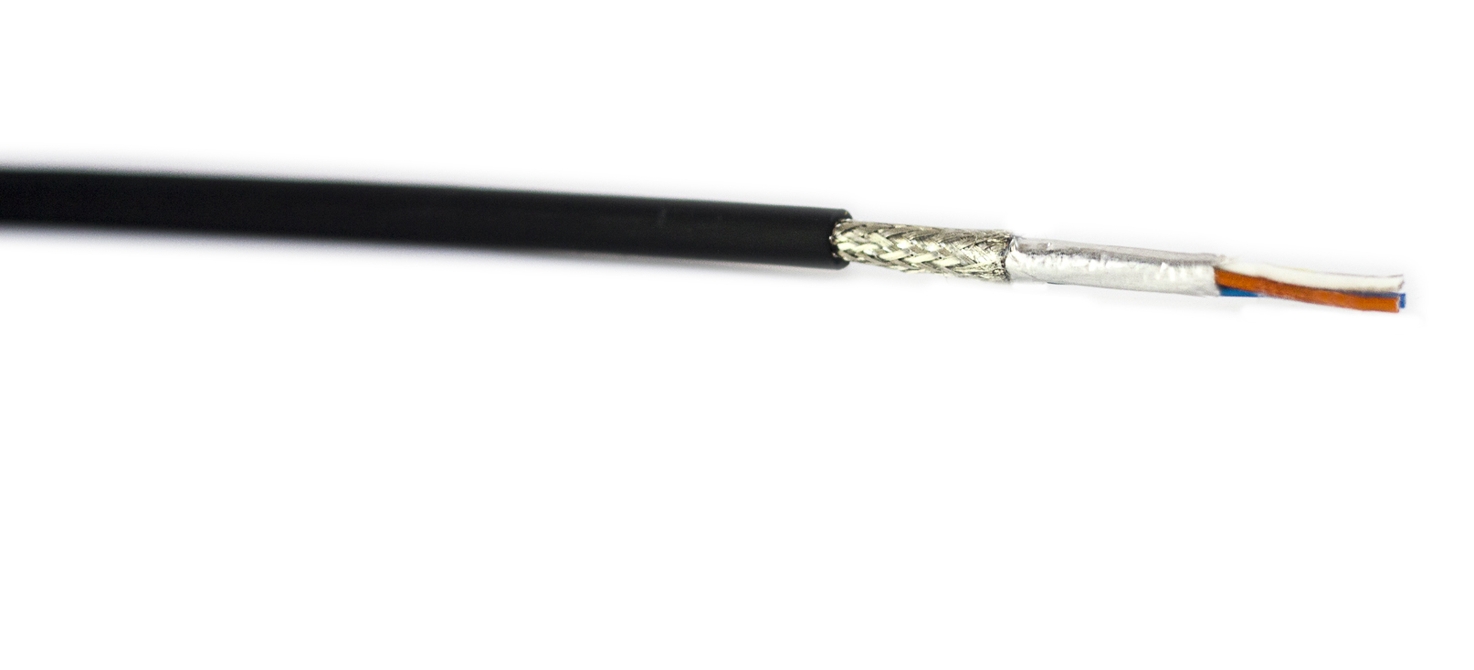

Ethernet cables
CAT5E 4core
100Ω 4X20AWG 90℃
100Ω 4X22AWG 90℃
100Ω 4X24AWG 80℃
CAT5E 8core
100Ω 4X2X22AWG 90℃
100Ω 4X2X24AWG 70℃
100Ω 4X2X26AWG 90℃
CAT6A
500Ω 4X2X26AWG 80℃
CAT7
600Ω 4X2X22AWG 90℃
600Ω 4X2X24AWG 90℃
Fire-resistant cables
To ensure maximum safety for rolling stock passengers, it is essential that lighting, ventilation, door and public address systems keep working correctly for a certain period of time so that emergency evacuation can be carried out in the event of a fire. Fire-resistant cables therefore have to be installed in the critical circuits of these systems.
EN50264

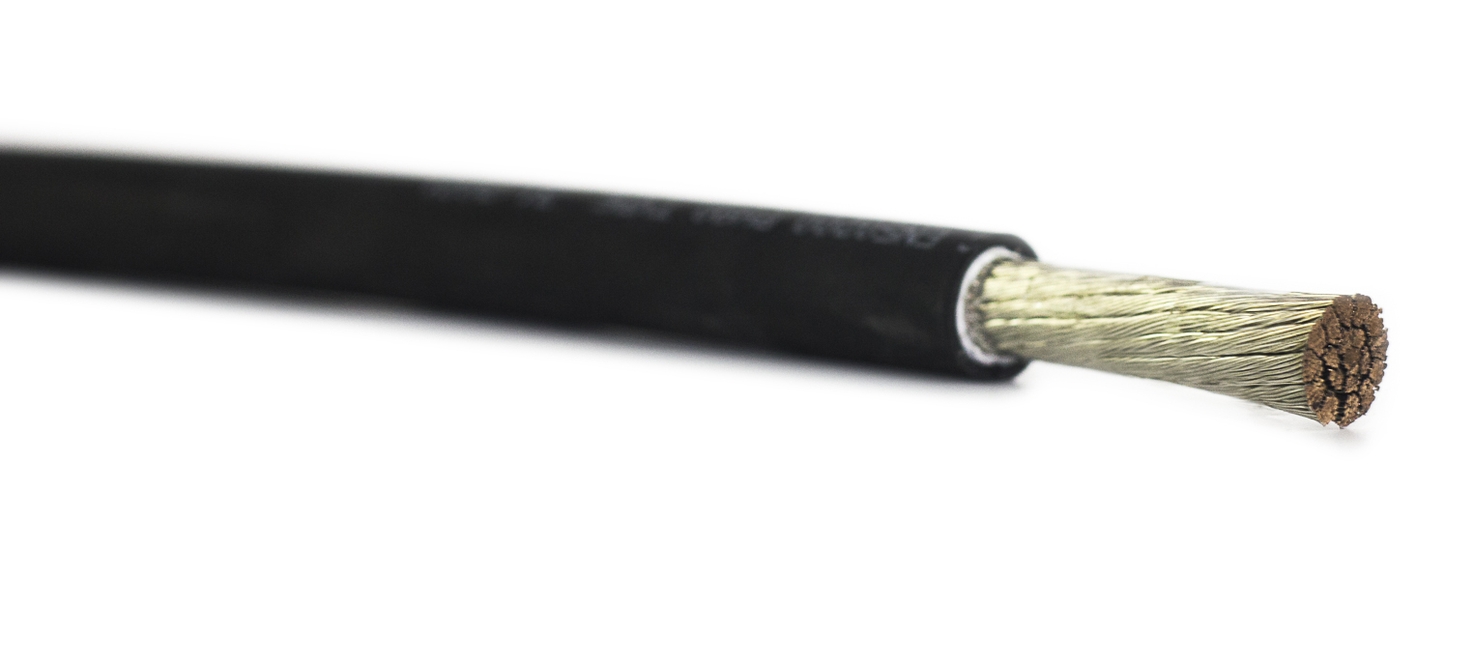

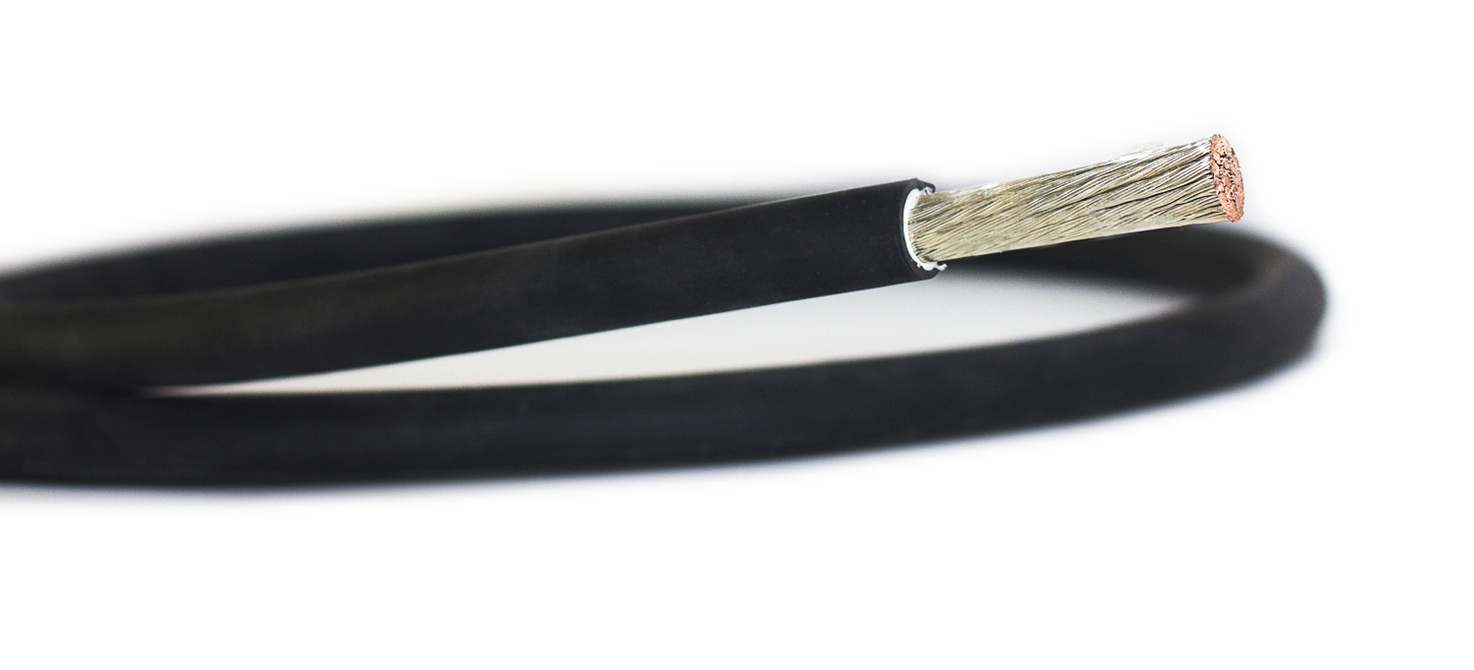

EN50264-3-1 0.6/1KV 90℃ M FR
EN50264-3-1 1.8/3KV 90℃ M FR

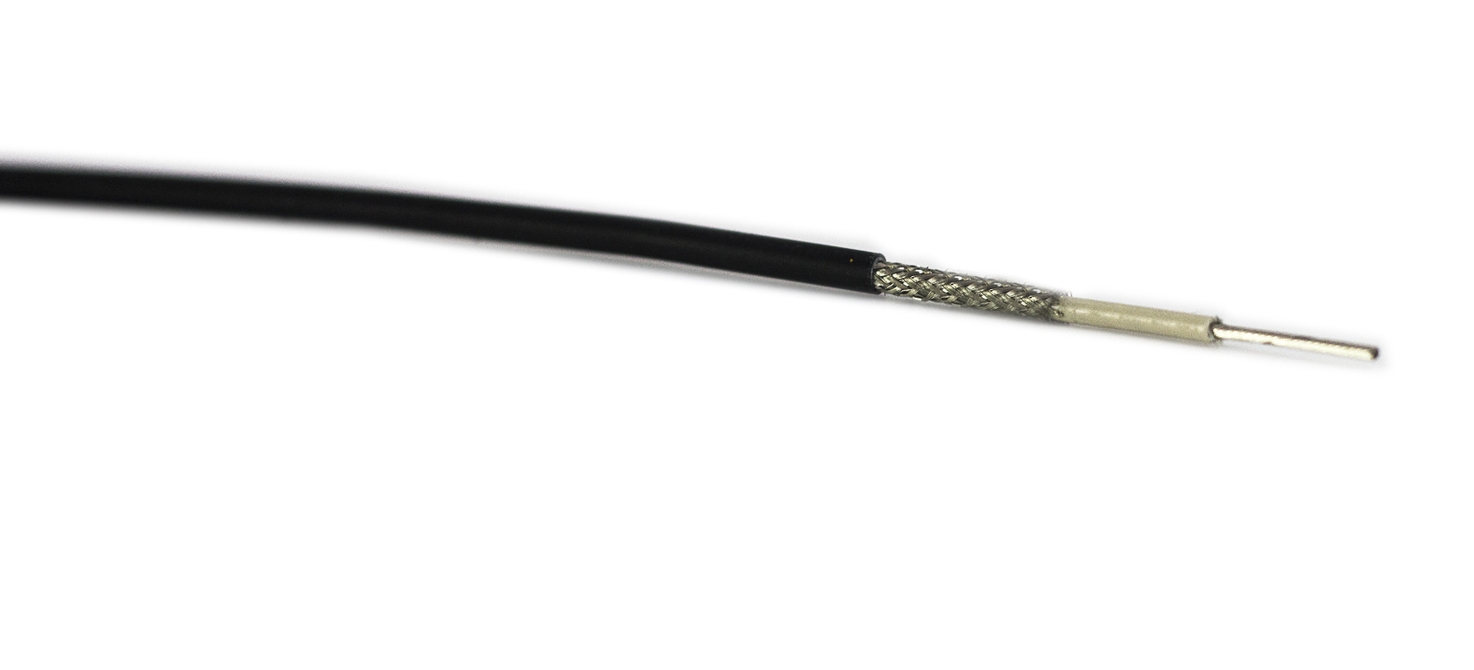

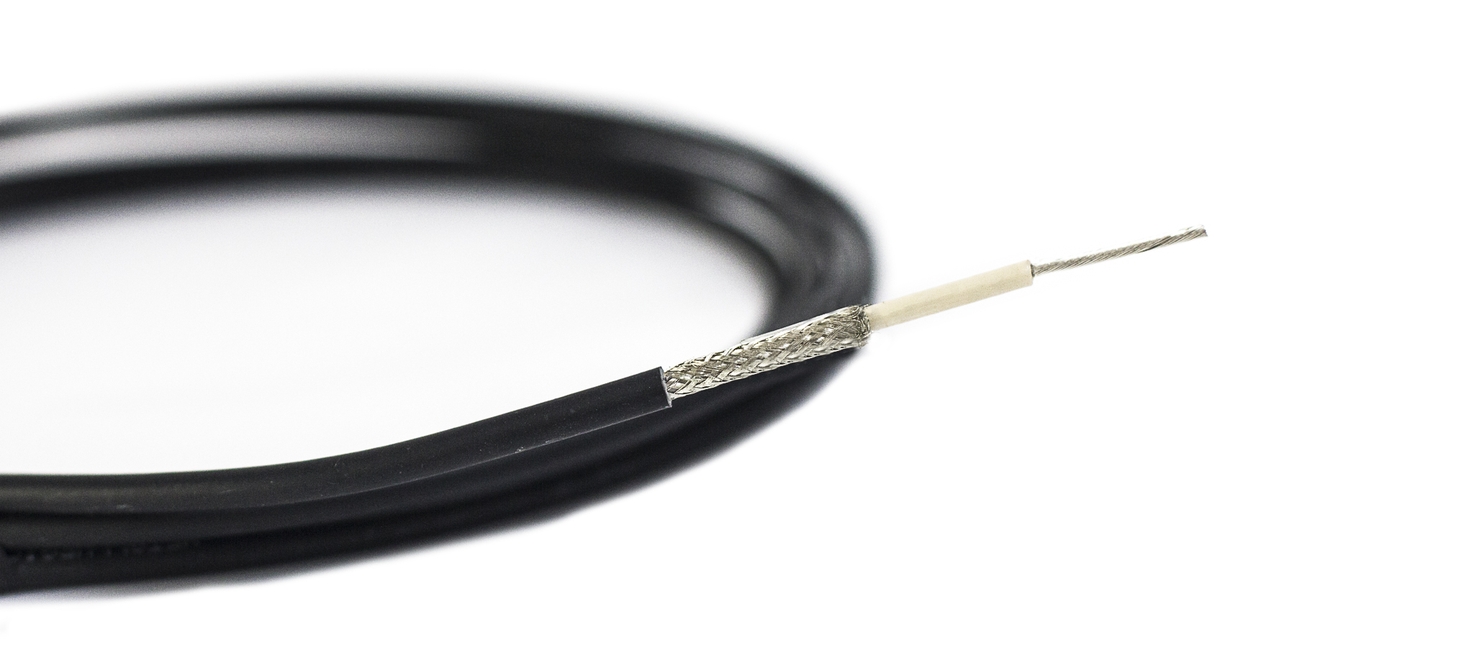

EN50306
EN50306-2 300/500V 105℃ M FR
EN50306-3 300/500V 90℃ MM S FR
EN50306-4 300/500V 1P/E 90℃ MM FR
EN50306-4 300/500V 3P/E 90℃ MM S FR

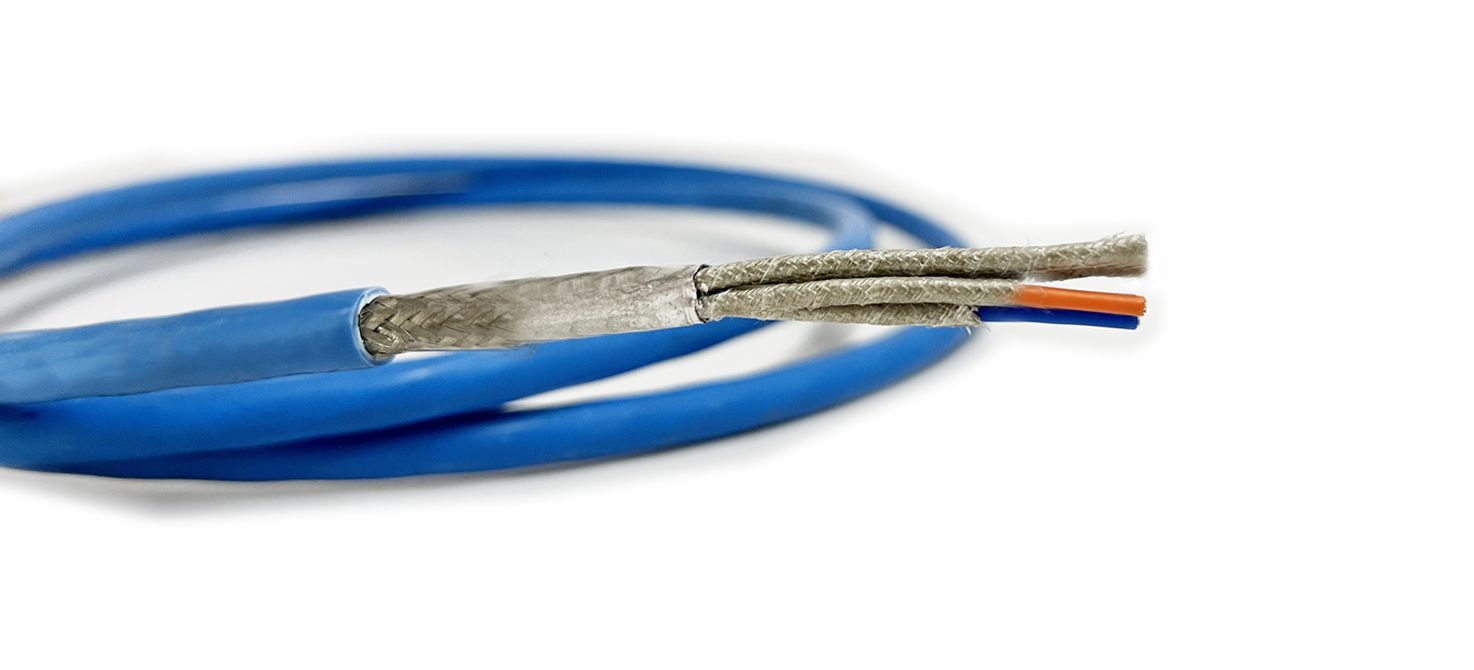

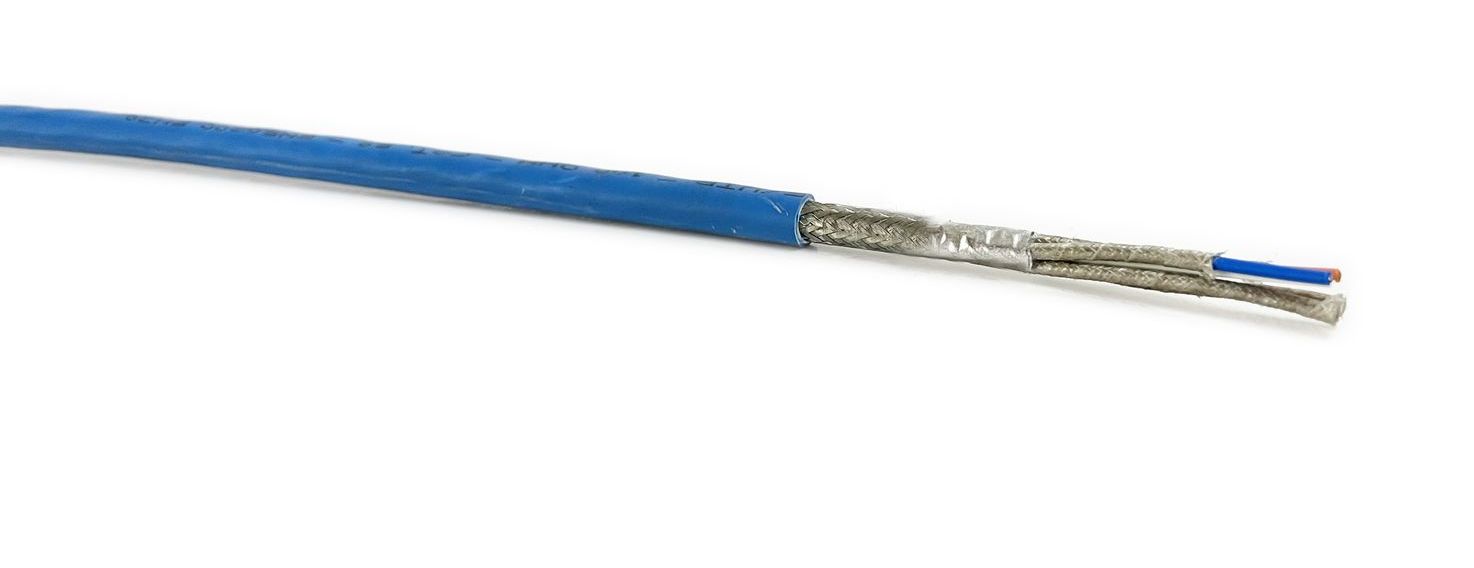

Fire-resistant data bus cables

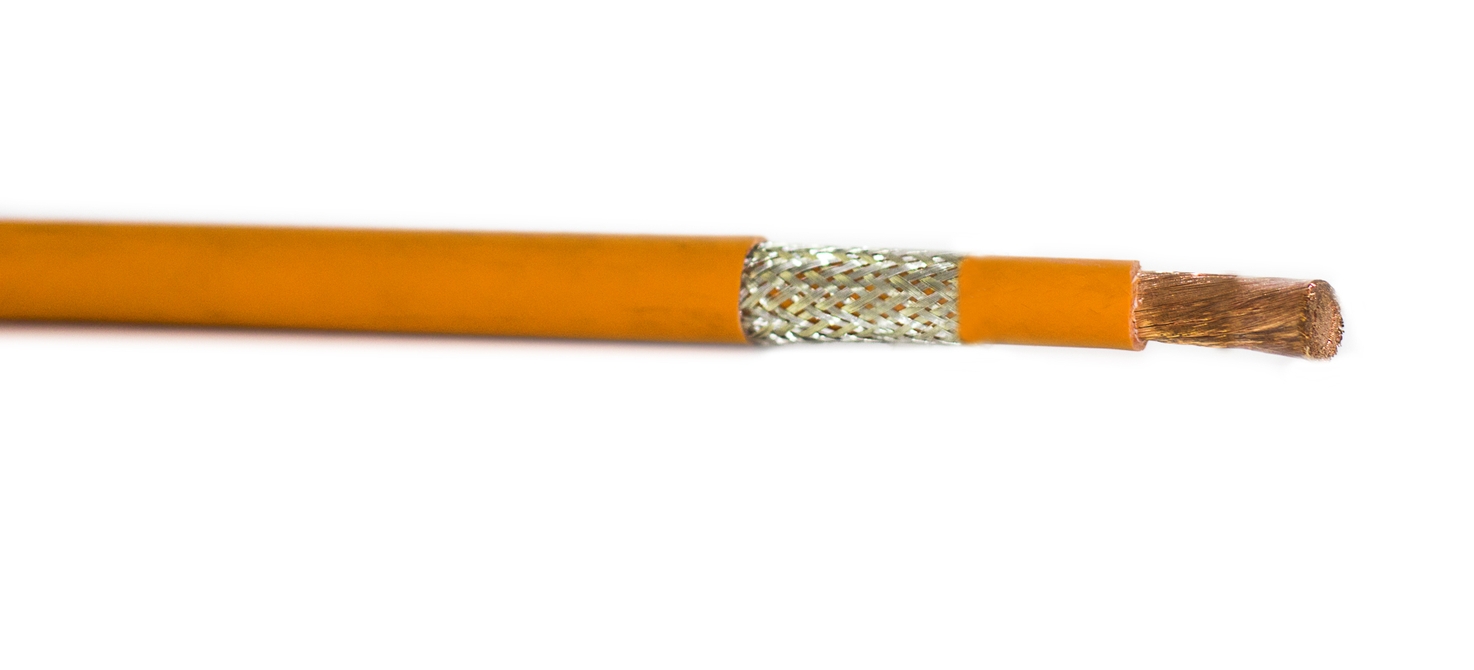

Plug-in Electric Vehicles

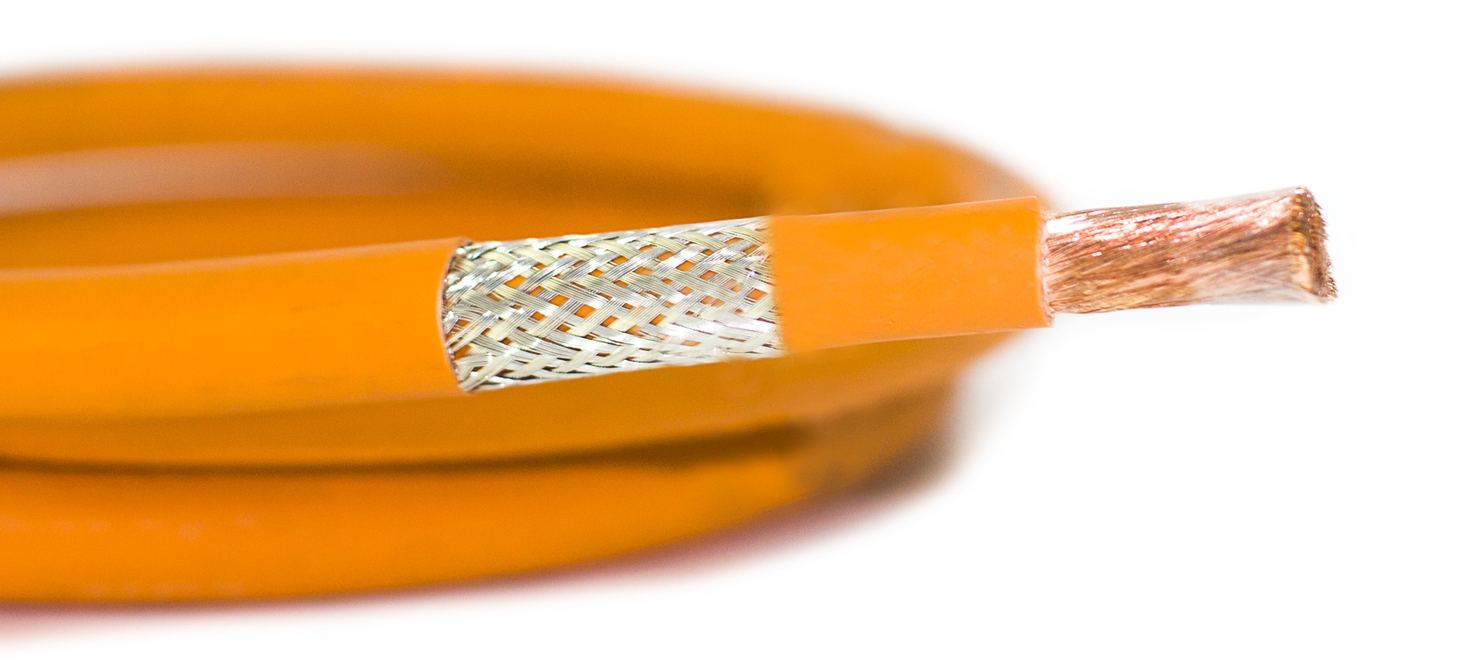

ISO19642-9 power cables
Wind Turbines

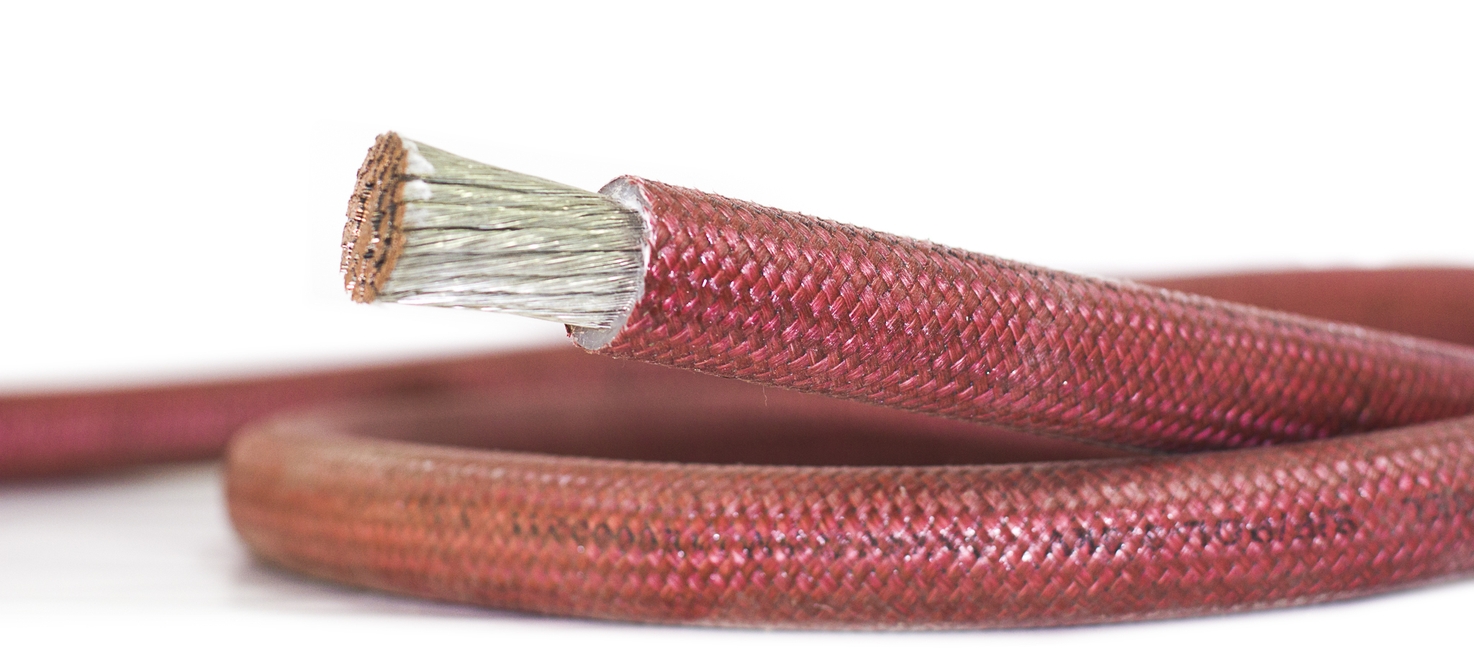

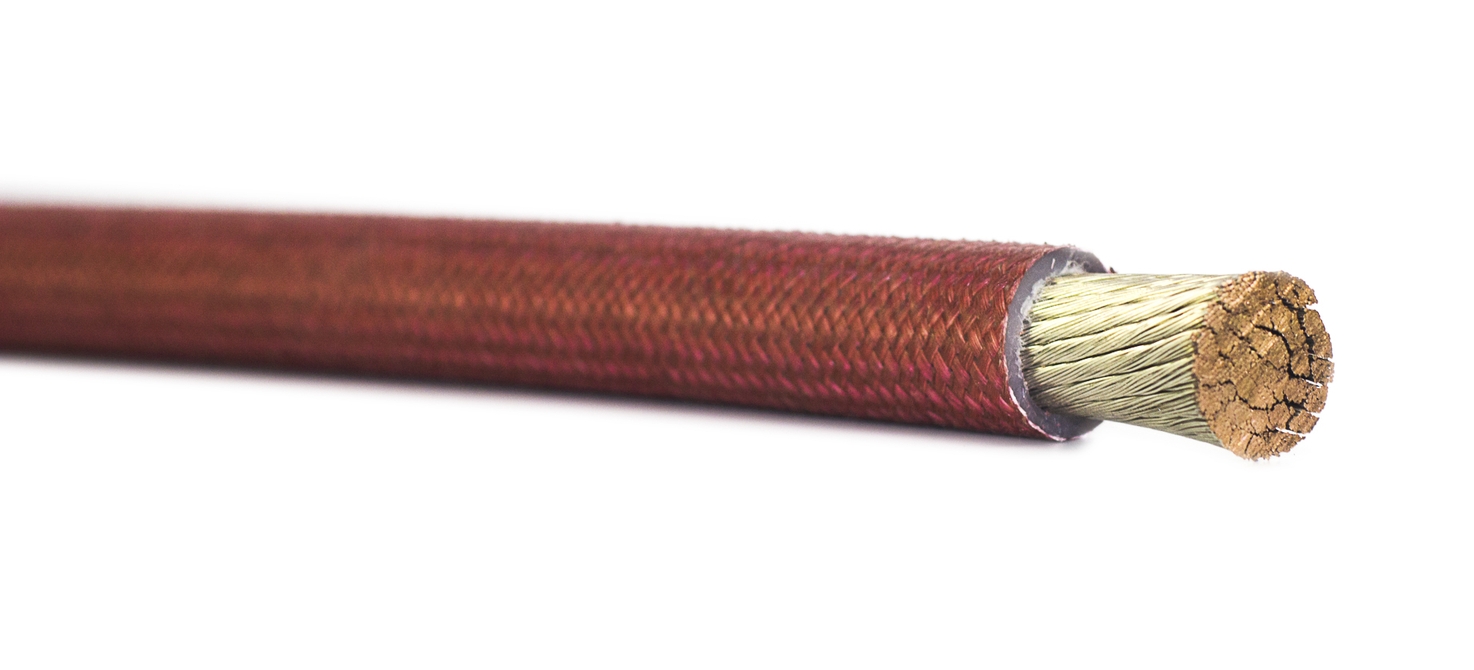

Power cables for motor leads
