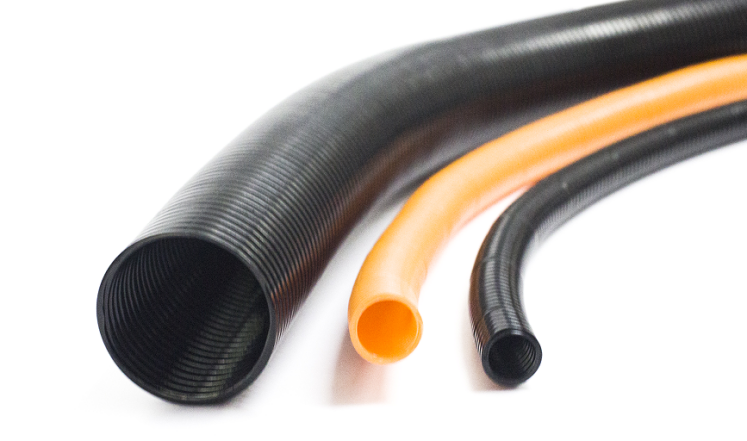

Material: High-grade imported PA6
Color: Dark grey, black, orange
Protection class: IP68
Certification:
Compression test, corrosion resistance test, heat resistance test, EN45545-2 test
Features:
Flexible and ductile, medium strength, torsion resistant, high mechanical strength, resistant to oil, alkalis, weak acids and other chemicals.
Abrasion and UV resistant
Halogen-free and UV resistant
Application: Suitable for railways, new energy vehicles, mechanical engineering, electrical control systems, the installation industry and more.
| Code | Specification | Inner dia. x outer dia. | Static bending radius | Dynamic / low-temperature bending radius | Weight | Packaging |
| Black | mm x mm | (mm) | (mm) | kg/m±10% | (m/roll) | |
| 7.101.0801.00 | MBT01-AD8.0B | 5.7x8.1 | 12 | 30 | 0.01 | 200 |
| 7.101.1001.00 | MBT01-AD10.0B | 6.5x10.0 | 15 | 35 | 0.017 | 100 |
| 7.1011301.00 | MBT01-AD13.0B | 9.5x13.0 | 20 | 45 | 0.028 | 100 |
| 7.101.1501.00 | MBT01-AD15.8B | 12x15.8 | 25 | 55 | 0.039 | 100 |
| 7.101.1801.00 | MBT01-AD18.5B | 14.3x18.5 | 35 | 65 | 0.044 | 50 |
| 7.101.2101.00 | MBT01-AD21.2B | 17x21.2 | 40 | 75 | 0.059 | 50 |
| 7.101.2501.00 | MBT01-AD25.5B | 21x25.5 | 42 | 85 | 0.069 | 50 |
| 7.101.2801.00 | MBT01-AD28.5B | 23x28.5 | 45 | 100 | 0.081 | 50 |
| 7.101.3101.00 | MBT01-AD31.5B | 26x31.5 | 50 | 110 | 0.102 | 25 |
| 7.101.3401.00 | MBT01-AD34.5B | 29x34.5 | 55 | 120 | 0.111 | 25 |
| 7.101.4201.00 | MBT01-AD42.5B | 36x42.5 | 65 | 150 | 0.168 | 25 |
| 7.101.5401.00 | MBT01-AD54.5B | 48x54.5 | 80 | 190 | 0.216 | 25 |
| Code | Specification | Inner dia. x outer dia. | Static bending radius | Dynamic / low-temperature bending radius | Weight | Packaging |
| Grey | mm x mm | (mm) | (mm) | kg/m±10% | (m/roll) | |
| 7.101.0802.00 | MBT01-AD8.0G | 5.7x8.1 | 12 | 30 | 0.01 | 200 |
| 7.101.1002.00 | MBT01-AD10.0G | 6.5x10.0 | 15 | 35 | 0.017 | 100 |
| 7.101.1302.00 | MBT01-AD13.0G | 9.5x13.0 | 20 | 45 | 0.028 | 100 |
| 7.101.1502.00 | MBT01-AD15.8G | 12x15.8 | 25 | 55 | 0.039 | 100 |
| 7.101.1802.00 | MBT01-AD18.5G | 14.3x18.5 | 35 | 65 | 0.044 | 50 |
| 7.101.2102.00 | MBT01-AD21.2G | 17x21.2 | 40 | 75 | 0.059 | 50 |
| 7.101.2502.00 | MBT01-AD25.5G | 21x25.5 | 42 | 85 | 0.069 | 50 |
| 7.101.2802.00 | MBT01-AD28.5G | 23x28.5 | 45 | 100 | 0.081 | 50 |
| 7.101.3102.00 | MBT01-AD31.5G | 26x31.5 | 50 | 110 | 0.102 | 25 |
| 7.101.3402.00 | MBT01-AD34.5G | 29x34.5 | 55 | 120 | 0.111 | 25 |
| 7.101.4202.00 | MBT01-AD42.5G | 36x42.5 | 65 | 150 | 0.168 | 25 |
| 7.101.5402.00 | MBT01-AD54.5G | 48x54.5 | 80 | 190 | 0.216 | 25 |
| Code | Specification | Inner dia. x outer dia. | Static bending radius | Dynamic / low-temperature bending radius | Weight | Packaging |
| Orange | mm x mm | (mm) | (mm) | kg/m±10% | (m/roll) | |
| 7.101.0803.00 | MBT01-AD8.0OG | 5.7x8.1 | 12 | 30 | 0.01 | 200 |
| 7.101.1003.00 | MBT01-AD10.0OG | 6.5x10.0 | 15 | 35 | 0.017 | 100 |
| 7.101.1303.00 | MBT01-AD13.0OG | 9.5x13.0 | 20 | 45 | 0.028 | 100 |
| 7.101.1503.00 | MBT01-AD15.8OG | 12x15.8 | 25 | 55 | 0.039 | 100 |
| 7.101.1803.00 | MBT01-AD18.5OG | 14.3x18.5 | 35 | 65 | 0.044 | 50 |
| 7.101.2103.00 | MBT01-AD21.2OG | 17x21.2 | 40 | 75 | 0.059 | 50 |
| 7.101.2503.00 | MBT01-AD25.5OG | 21x25.5 | 42 | 85 | 0.069 | 50 |
| 7.101.2803.00 | MBT01-AD28.5OG | 23x28.5 | 45 | 100 | 0.081 | 50 |
| 7.101.3103.00 | MBT01-AD31.5OG | 26x31.5 | 50 | 110 | 0.102 | 25 |
| 7.101.3403.00 | MBT01-AD34.5OG | 29x34.5 | 55 | 120 | 0.111 | 25 |
| 7.101.4203.00 | MBT01-AD42.5OG | 36x42.5 | 65 | 150 | 0.168 | 25 |
| 7.101.5403.00 | MBT01-AD54.5OG | 48x54.5 | 80 | 190 | 0.216 | 25 |
